Moorpark Junction
« on: November 22, 2019, 08:24:38 PM »
Following on from the original "Moorpark" layout (which has now been disassembled and anything reusable stored away) I'm closing on a final track plan for the replacement.

My prime criteria for the new layout are as follows (some at the behest of The Management!)

  • Fit comfortably in the room assigned for it, leaving enough space for a small modelling table and storage and plenty of room to walk around
  • Twin-mainline continuous running - I like watching the trains go by
  • Two levels, one level for a branch/freight line, one for the mainline, interconnected
  • Space for a small TMD and a goods yard with shunting capability/interest
  • If possible, room to turn a steam locomotive (as I've got one and it's going to sneak into operations under the "heritage" banner)
  • Storage roads/sidings so I can see my expanding collection (courtesy of the temptation devil which is eBay)
  • Bags of room for scenic modelling, I find I really enjoy that aspect of the hobby. The Management has dictated a canal scene, and sheep. Don't ask me how, but she discovered sheepdog trial videos on YouTube and now sheep-spots when we go back to the UK to visit. Also, when we take road or rail trips she loves seeing the canals that run alongside the road and railway in some places. So a canal and sheep are to be featured, also a viaduct (if I can find a place where it makes sense), modeled on an abbreviated version of the Hockley viaduct in Winchester.
  • Reuse of as much of the previous layout as possible, trackwork, structures and scenics
  • Design for the possibility of separating the layout into two sections in case I have to move it

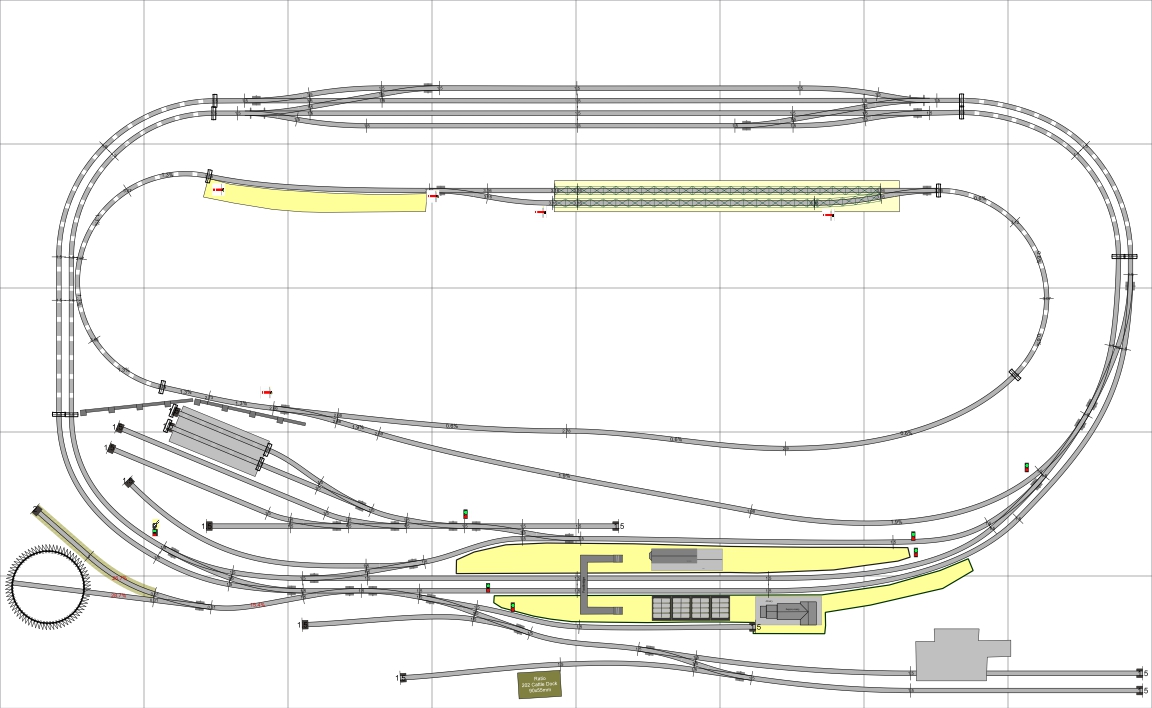

So with all that in mind, I measured and found that I could happily fit an 8' x 5' layout in the space available, where it can be viewable from three sides, and operated from the fourth (or anywhere if I add walk-around capability) which can be split into two 4'x5' sections if necessary.

So then came the pencil-and-paper sketches, some prototyping on AnyRail, much back-to-the-drawing-board-and-start-over, looking for inspiration from prototypical locations I remember from the UK, other layouts, track plans here and there and nothing was resonating. I also discovered during this phase that I find it hard to think spatially, so the vertical aspects of the plans were often wildly impossible, and I kept getting carried away making the layout larger than my constraints.

Then I bought a copy of the PECO guide to N-gauge modelling, not for track plan ideas per se, but just to see what I'd missed or messed with the first iteration of Moorpark. And in there was a plan for exactly what I was looking for - it ticked all the boxes planning-wise, and the finished article looked stunning to boot. The guy that built it posts on this forum, but it had passed me by until that point. It was, or rather is, the magnificent "Elvinley" by Ian Arkley, @Elvinley of this parish.

I love the space for buildings and scenery, I thought the fact that the fiddle yard at the back was scenic and not hidden was brilliant and it all looked so cohesive. I was sold on the idea.

Now, even though the track plan was published in the guide, I felt uncomfortable copying Ian's hard work on the design without some kind of approval, so I got in touch with Ian via the Forum and told him I was going to steal plagiarize shamelessly rip off be inspired by and build a similar layout, and would he mind?

Gentleman that he is, he said he'd be delighted if I went ahead, and we had a couple of back-and-forth exchanges about design and operations. Accordingly, I've made a couple of changes to reduce the gradient of the transition from the main to the branch line, to allow trains to more easily cross from the up to the down line in the sidings so I can send EMU/DMU's back the other way, and few other bits and pieces, but 95% of the design is Ian's; I haven't changed anything just to make it different.
