Puffing Billy Trestle Bridge Layout (HO/On30)
« on: December 28, 2019, 12:58:57 PM »
While my current N scale layout build (Bayswater Station) has slowed due to the requirement to purchase additional electrical infrastructure, I have started a more simple, straight-forward layout to work on in parallel. So, why I am posting here rather than in the Layout Planning or Layout Construction forum? Well, this is because this layout is being performed with that Horrible Other scale track (HO) in anticipation of running either HO or On30 scale locomotives on the track and I didn't want to run foul of forum rules.

Nevertheless, I think that this "side layout" project has enough novel features that it might be of interest to others here on the forum, hence the reason for this post in this forum group.

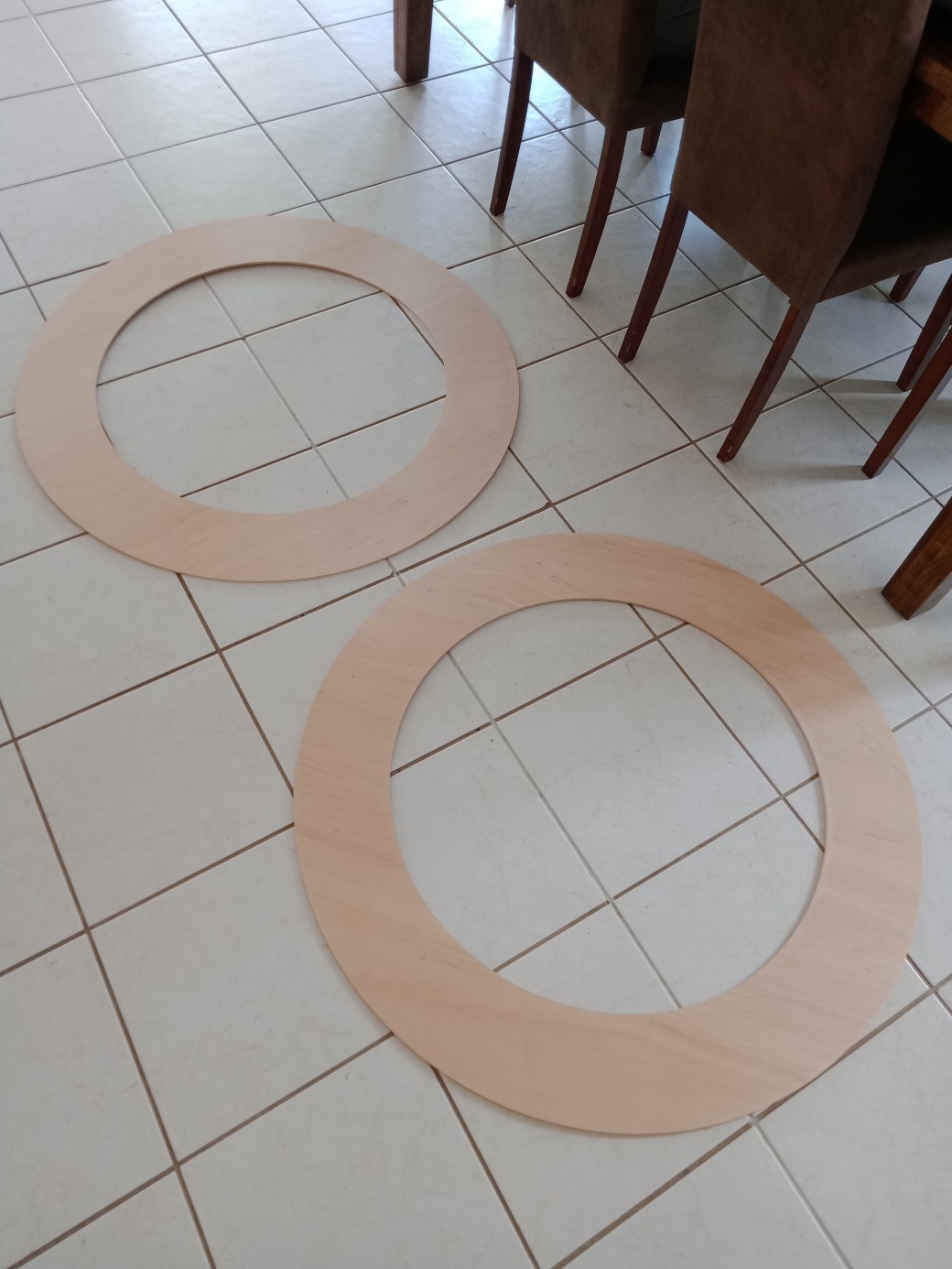

What's unique about this layout? Well, for a start, it is built on a pair of "donut" baseboards:



Alright, so while that might be "different", it doesn't make for an interesting layout, does it?

Well, this is a point that I would probably concede, but this layout is going to be based on the "Puffing Billy" narrow-gauge tourist railway here in Melbourne. Specifically, I am going to replicate the trestle bridge that curves in a semi-circle and forms a major tourist attraction in it's own right:







And from Google Earth, it becomes clear why this layout is suited for these "donut" baseboards:

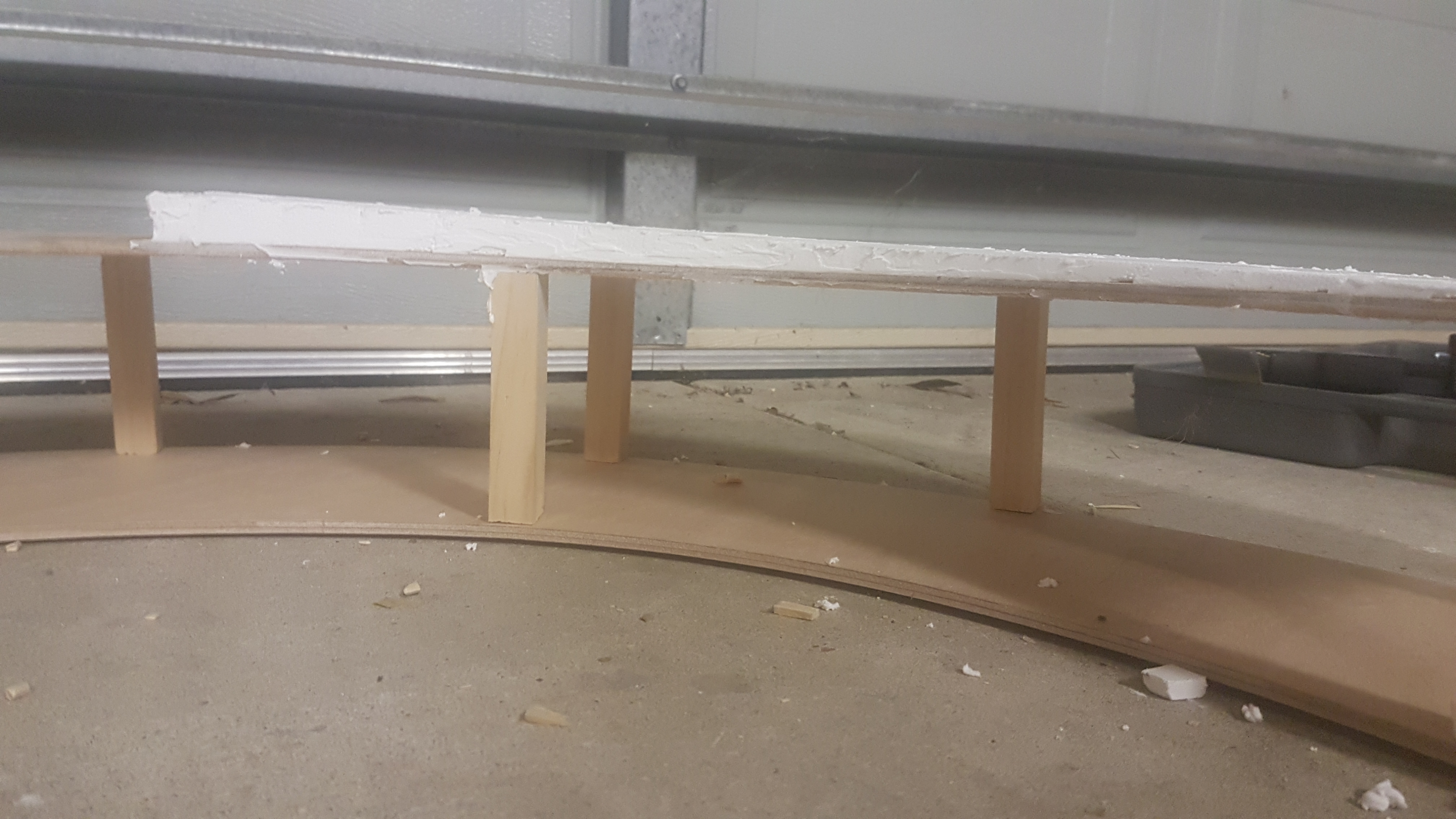

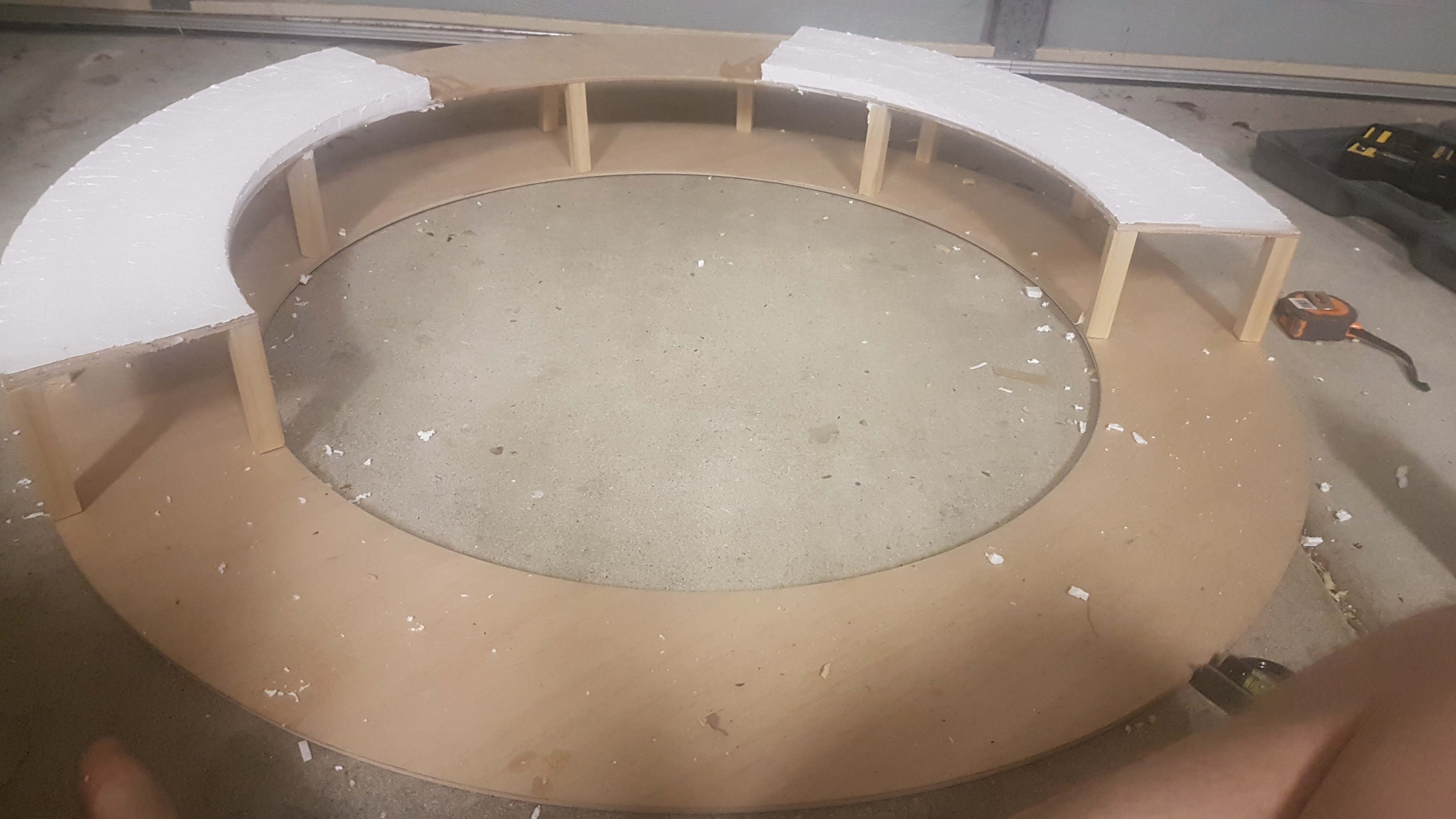

So far, I have built the baseboards into two layers, representing the upper running track of the train and the lower ground level that falls away under the trestle bridge. On the upper level I have additionally installed some inclines to add some interest to this "non-focal" area of the layout.





In terms of stock, I have purchased a Powerline Victoria Class T diesel (analogous to the DH31 engine in the prototype photo above) in the HO scale, but ultimately I may end up running an On30 model (available from a specialty model provider here in Melbourne) of the "Puffing Billy" steam engine and carriages which form an iconic element of this tourist railway.

Anyhow, I am having fun with this very simple layout and thought I would share this with the forum (but didn't want to run foul of forum rules by posting in the other groups).
