Good afternoon all

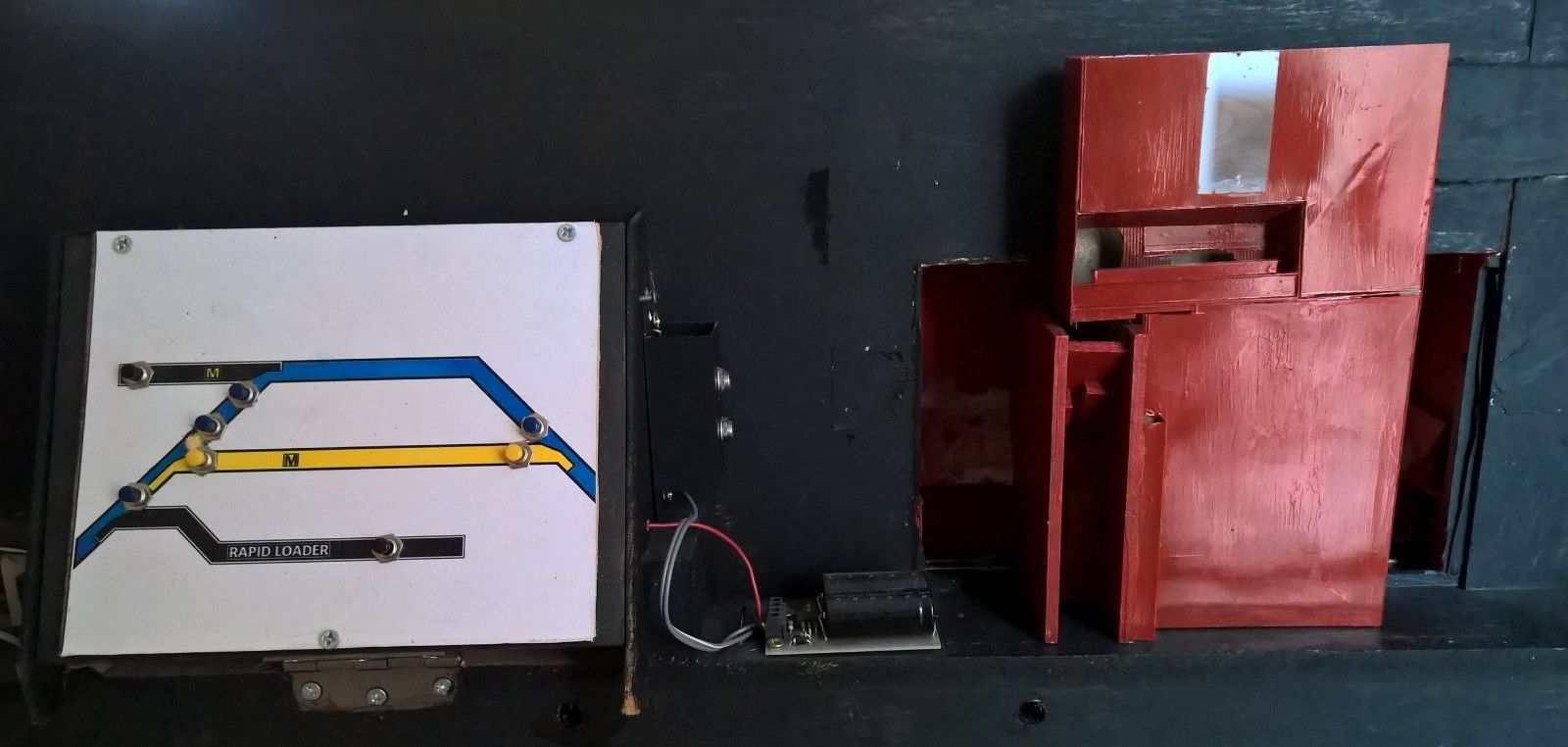

You may of already seen elsewhere that I am now the proud owner of Airesby Colliery, a fascinating ex exhibition layout recreating the atmosphere of the Aire Valley Merry-go-Round coal operations of the BR Railfreight Coal sector and early privatisation eras. It also features a functioning rapid loader to load coal trains. This has been cleverly designed to hand load the wagons via a scratch built shoot affixed behind the rapid loader.



I purchased this once popular exhibition layout back in August after seeing it for sale eBay. It was not to be sniffed at, especially at the set buy it now price! The seller, a member of the Bingham MRC was simply selling due to starting another project and needed the room in his garage. I just couldn't resist! Having a passion for all things MGR and especially all the classes associated with MGR workings, for me the Midlands and North West early 90's. Classes 20, 56, 58 and 60 with rakes of HAA and HEA hoppers in tow will soon again be seen rattling around Airesby Colliery.



The layout does need a little TLC in places. The main part being the back scene, which has a few tears and creases in it, so this will be replaced / reworked. Other minor jobs include a damn good hoovering, and reworking / tidying up the scenics in places. Yesterday I managed to set the layout up and give it a thorough testing with my class 58 and 11 MGR hoppers. Why only 11 MGR hoppers you say? Well being a small, compact layout, compromises had to be given on the length of rakes. You are limited to 11 MGR hoppers plus loco, but I feel this still captures the feel and atmosphere. Airesby is an approximate representation of operating practices and you still get that big colliery and MGR feel.



Overview:

- 6ft x 3ft

- Wired for DCC operation (Power provided by NCE Powercab)

- Era modelled - Early 1990's

- Features a working coal loader, manually operated from behind

- 5-road traverser

- Splits into 4 boards

- 4 Turnouts operated by SEEP point motors

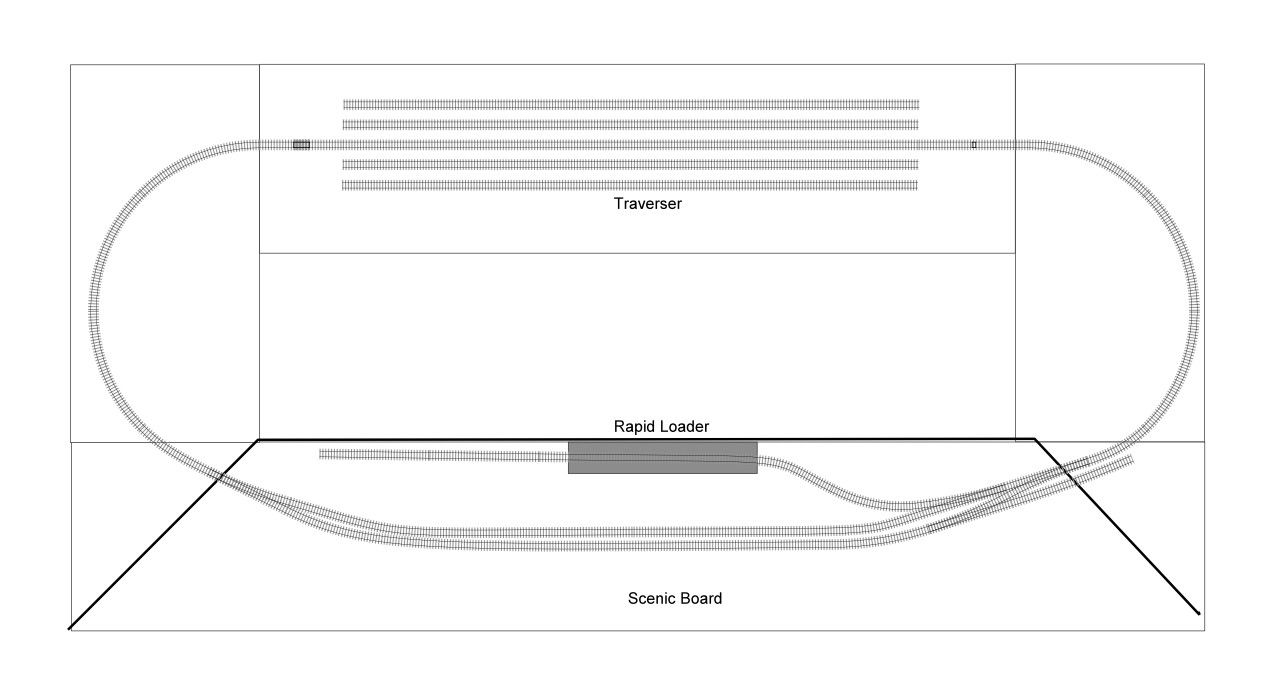

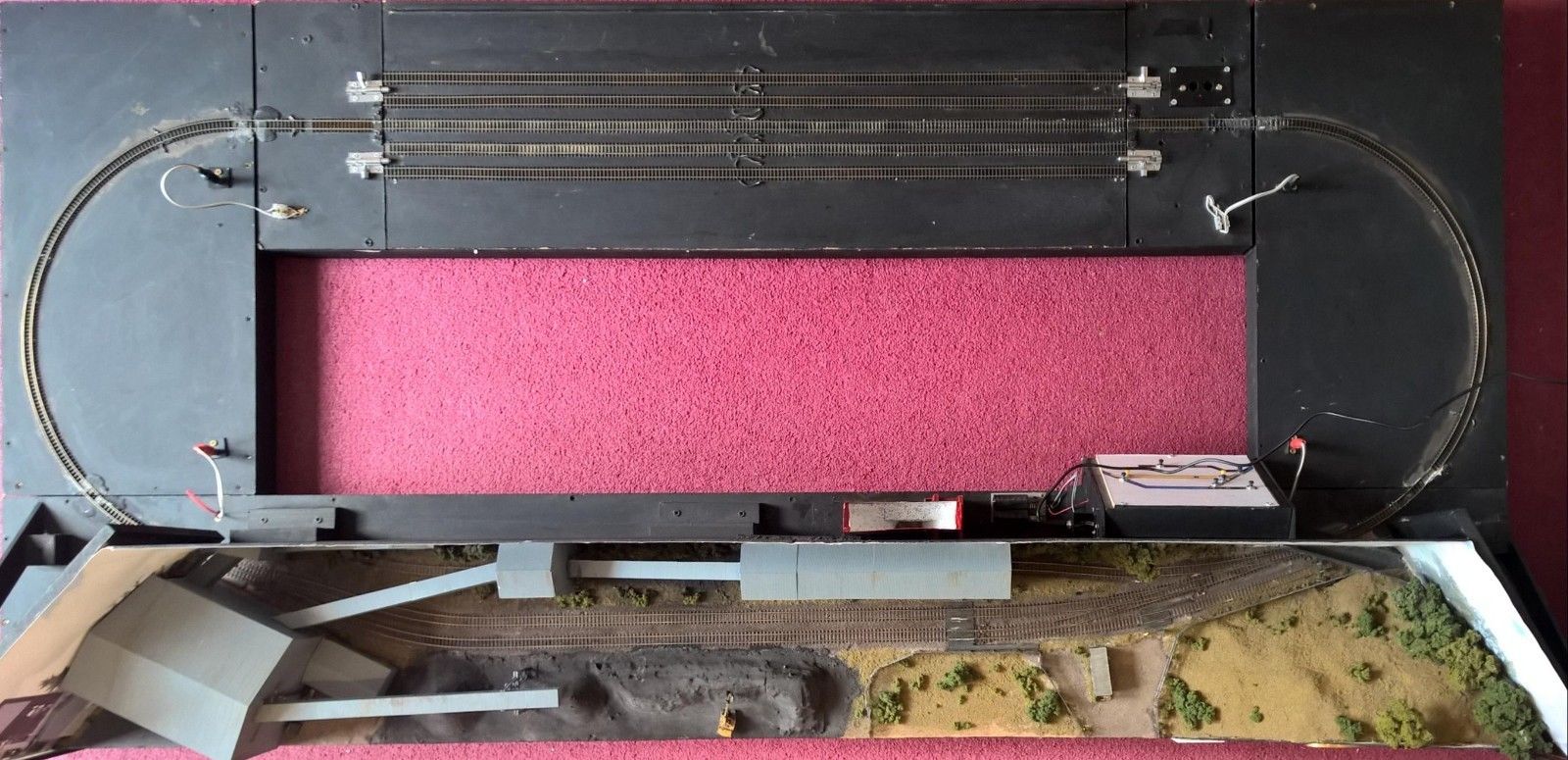

The layout is made up from 4 boards:

- Main scenic board is a single board 6ft x 1ft

- Traverser Fiddleyard is 4ft x 1ft

- Two curve boards are 2ft x 1ft

The track is a continuous single track oval with a 5-road traverser fiddleyard at the back. The scenic track is code 55 Peco and code 80 behind the scenes.







The Scenic section at the front has:

- A passing loop with a Dapol easi-shunt magnet embedded to allow run-around manoeuvres following coal loading

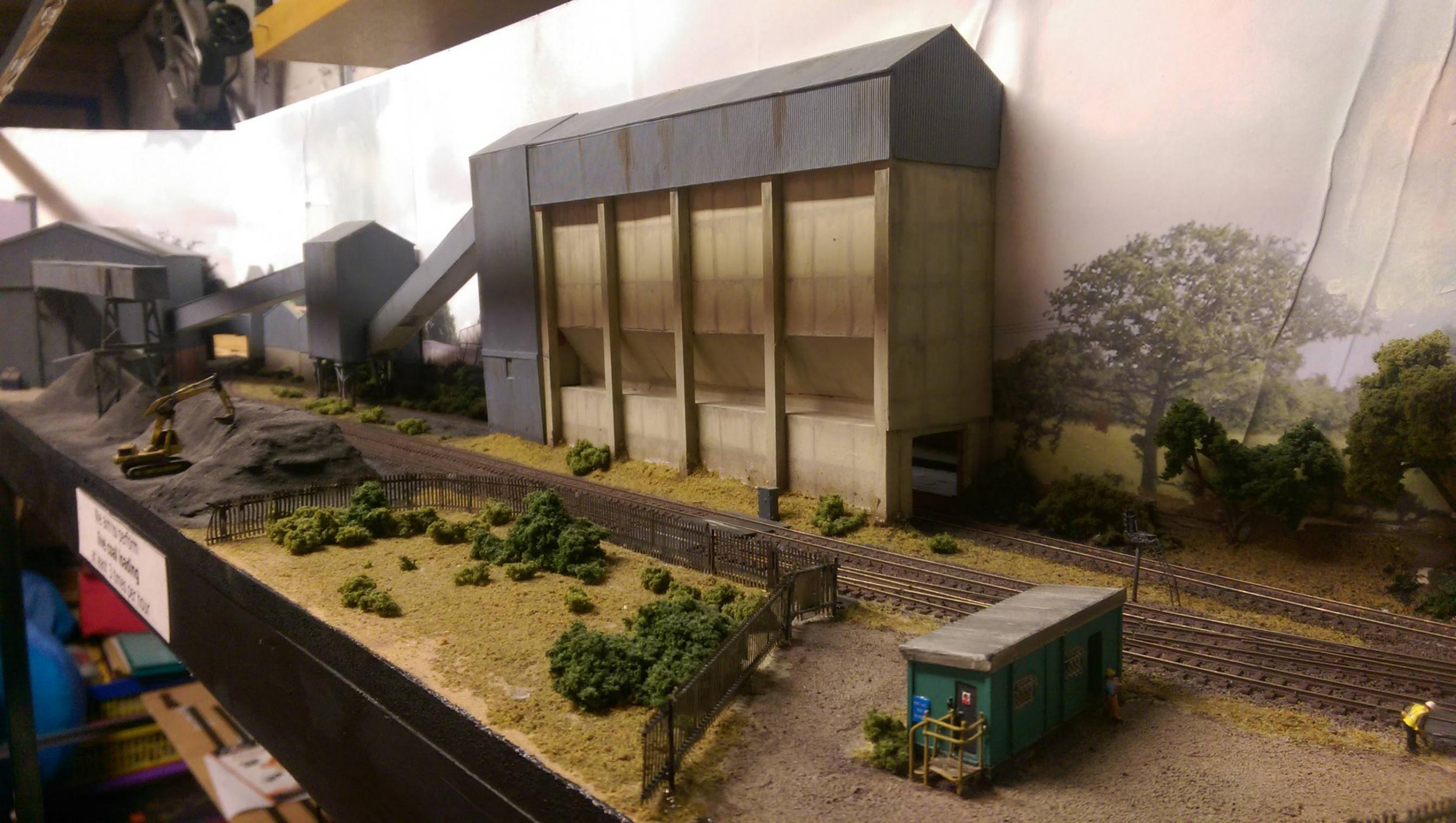

- A siding running to the rapid loader

- A short siding for - Loco stabling point

Once all the minor work is complete, I plan on returning Airesby Colliery to the exhibition circuit, hopefully sometime in late 2019.









I even managed a YouTube video :confused1: https://youtu.be/PKt8eaoYYKs

Cheers
Anthony
Sutton St Annes - Provincial north-west Lancs - 1990-1995 http://www.ngaugeforum.co.uk/SMFN/index.php?topic=39173.0

Ainsley Colliery was Airesby Colliery - Exhibition layout with Merry-Go-Round trains set in the early 1990's - http://www.ngaugeforum.co.uk/SMFN/index.php?topic=43295.new#new

Next exhibition for SSA - DEFine modellers day - Saturday 12th January 2019. Risley Village Hall, Derby Road, Risley, Derby, DE72 3SU

Offline Delboy

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 599
  • Country: gb
  • Gender: Male
    • Awards
Looks an excellent exhibition layout and will no doubt give you hours of pleasure.
She who must be obeyed says I am spending too much time on this forum. I love her dearly but what does she know?

Offline The Q

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 726
  • Country: gb
    • Awards
congratulations you'll be ready to ready steady run a railway when you've cooked up some changes..

Offline 37058

  • Trade Count: (+6)
  • Full Member
  • ***
  • N Gauge Society Number: 14122
  • Posts: 540
  • Country: gb
  • Gender: Male
  • 37058 Stafford 29-05-99 1D71 1203 BNS - HHD
    • Ebay
    • Facebook
    • Awards
Looks an excellent exhibition layout and will no doubt give you hours of pleasure.

Thank you Delboy.

I am very much looking forward to restoring Airesby, soon to be Ainsley Colliery and getting her back on the exhibition circuit. I do have lot's of plans, so please do keep your eyes peeled for future updates.

Cheers
Anthony
Sutton St Annes - Provincial north-west Lancs - 1990-1995 http://www.ngaugeforum.co.uk/SMFN/index.php?topic=39173.0

Ainsley Colliery was Airesby Colliery - Exhibition layout with Merry-Go-Round trains set in the early 1990's - http://www.ngaugeforum.co.uk/SMFN/index.php?topic=43295.new#new

Next exhibition for SSA - DEFine modellers day - Saturday 12th January 2019. Risley Village Hall, Derby Road, Risley, Derby, DE72 3SU

Offline 37058

  • Trade Count: (+6)
  • Full Member
  • ***
  • N Gauge Society Number: 14122
  • Posts: 540
  • Country: gb
  • Gender: Male
  • 37058 Stafford 29-05-99 1D71 1203 BNS - HHD
    • Ebay
    • Facebook
    • Awards
congratulations you'll be ready to ready steady run a railway when you've cooked up some changes..

Cheers Boos.

Do I sense a few puns in there :smiley-laughing: Hopefully be cooking on gas soon, nooooooo, most defiantly coal :P

Cheers
Anthony
Sutton St Annes - Provincial north-west Lancs - 1990-1995 http://www.ngaugeforum.co.uk/SMFN/index.php?topic=39173.0

Ainsley Colliery was Airesby Colliery - Exhibition layout with Merry-Go-Round trains set in the early 1990's - http://www.ngaugeforum.co.uk/SMFN/index.php?topic=43295.new#new

Next exhibition for SSA - DEFine modellers day - Saturday 12th January 2019. Risley Village Hall, Derby Road, Risley, Derby, DE72 3SU

Offline 37058

  • Trade Count: (+6)
  • Full Member
  • ***
  • N Gauge Society Number: 14122
  • Posts: 540
  • Country: gb
  • Gender: Male
  • 37058 Stafford 29-05-99 1D71 1203 BNS - HHD
    • Ebay
    • Facebook
    • Awards

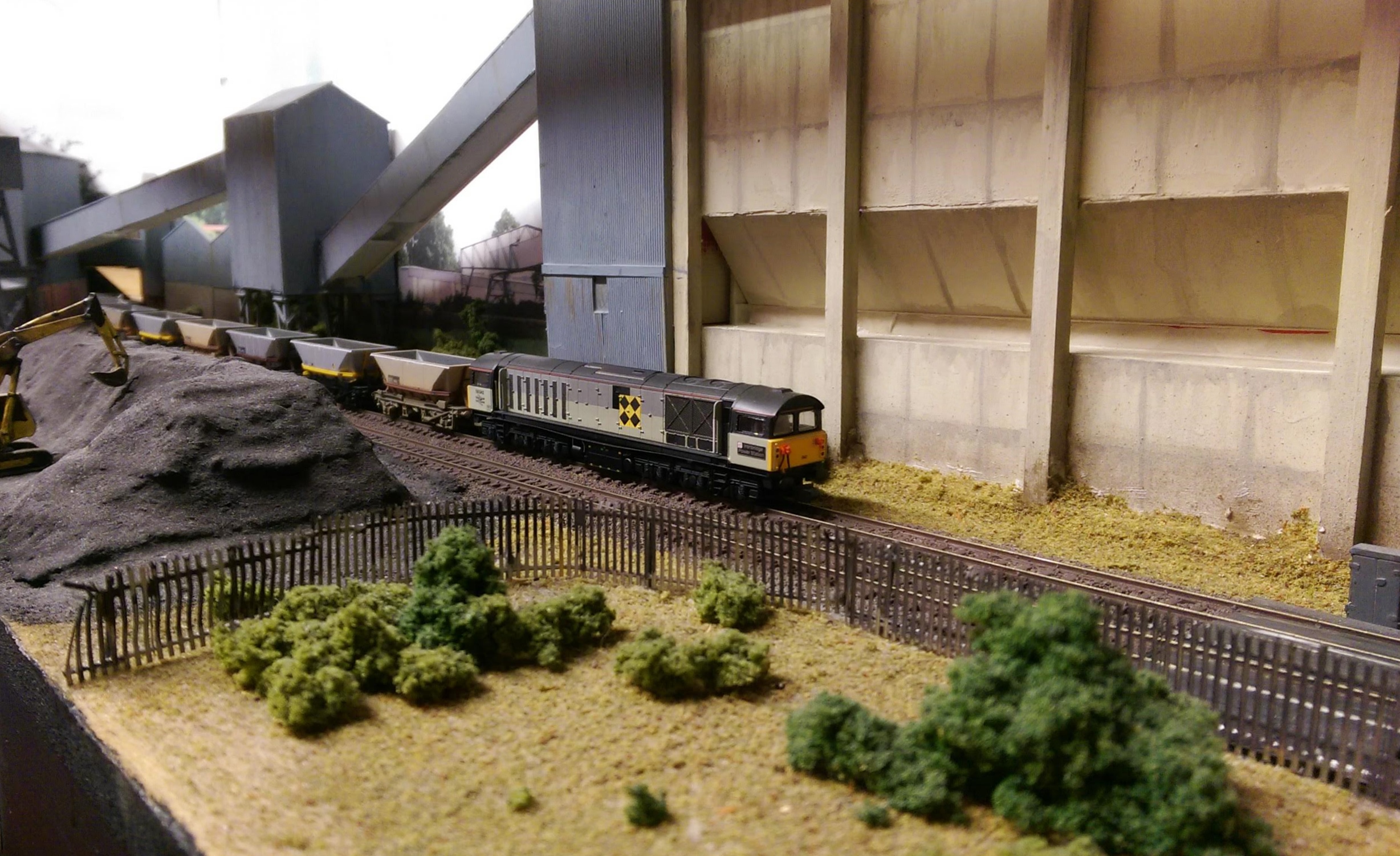

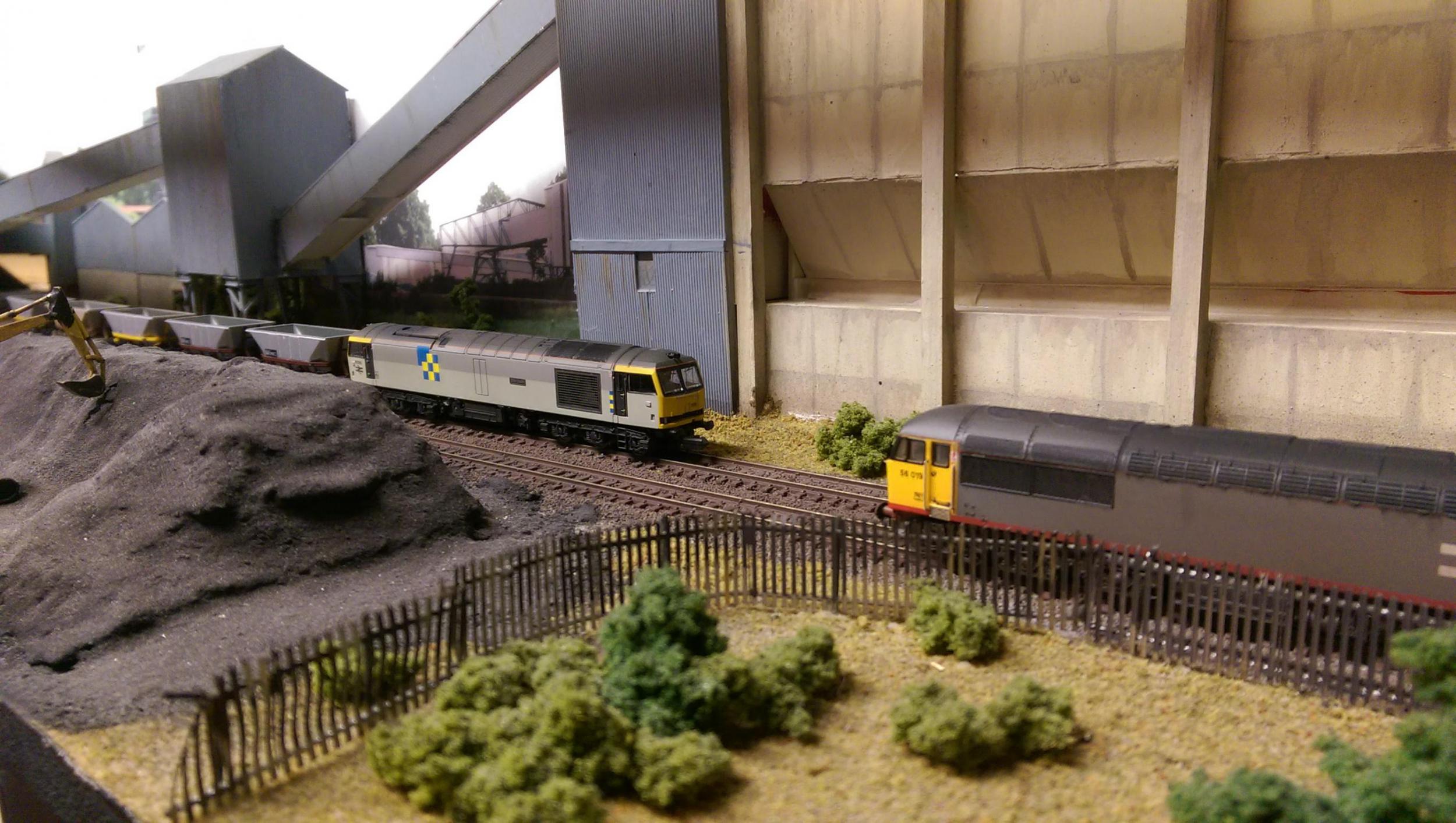

Here's a photo that may jog some memories, if you have seen Airesby at past exhibitions...

The first and only time for me was Stafford in 2015 and I was blown away. I spent quite a bit of time viewing as well as nattering to then builder / owner. I was hooked.



Cheers
Anthony
Sutton St Annes - Provincial north-west Lancs - 1990-1995 http://www.ngaugeforum.co.uk/SMFN/index.php?topic=39173.0

Ainsley Colliery was Airesby Colliery - Exhibition layout with Merry-Go-Round trains set in the early 1990's - http://www.ngaugeforum.co.uk/SMFN/index.php?topic=43295.new#new

Next exhibition for SSA - DEFine modellers day - Saturday 12th January 2019. Risley Village Hall, Derby Road, Risley, Derby, DE72 3SU

Offline Delboy

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 599
  • Country: gb
  • Gender: Male
    • Awards
Looks an excellent exhibition layout and will no doubt give you hours of pleasure.

Thank you Delboy.

I am very much looking forward to restoring Airesby, soon to be Ainsley Colliery and getting her back on the exhibition circuit. I do have lot's of plans, so please do keep your eyes peeled for future updates.

Cheers
Anthony
Will do Anthony.
She who must be obeyed says I am spending too much time on this forum. I love her dearly but what does she know?

Offline spbeck

  • Trade Count: (0)
  • Full Member
  • ***
  • N Gauge Society Number: 27550
  • Posts: 204
  • Country: gb
    • Awards
Right up my sectorisation street.

Looking forward to updates :)

Offline Newportnobby

  • Global Moderator
  • Trade Count: (+63)
  • Full Member
  • *****
  • N Gauge Society Number: 21962
  • Posts: 29997
  • Country: england
  • Gender: Male
    • Awards
I've seen that layout in the flesh at the 2015 Stafford Show and am glad it's gone into safe hands.






Offline bees

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 257
  • Country: gb
  • Gender: Male
    • Ebay
    • Awards
a great buy for you, looks great, I'm looking forward to seeing what your plans are.

I like to start each day the same, sit up and take a deep breath!
First objective for the day achieved, woohoo!!!
