Control Panel Drawing Software - ideas?
« on: May 12, 2018, 02:39:32 pm »
 :helpneededsign:
Planning Software:
I am looking to build my own control panels / mimic diagrams using wood and Perspex with line diagrams laser printed, under the Perspex . Can anyone recommend any good software to plan this? Would track planning software do the trick? Panel sizes are approx A4 and A4 folded in half, longwise. Currently I’m using MS PowerPoint but it’s not great for this, particularly if I move things around!
Any recommendations?
Many thanks!

Offline Newportnobby

  • Global Moderator
  • Trade Count: (+63)
  • Full Member
  • *****
  • N Gauge Society Number: 21962
  • Posts: 29319
  • Country: england
  • Gender: Male
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #1 on: May 12, 2018, 03:34:07 pm »
I'm not 'pooter savvy enough for a program so came up with this...........

http://www.ngaugeforum.co.uk/SMFN/index.php?topic=22084.msg507777#msg507777

However, I believe @Zogbert Splod may be able to help you out.

Offline koyli55002

  • Trade Count: (0)
  • Full Member
  • ***
  • N Gauge Society Number: 5508
  • Posts: 219
  • Country: gb
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #2 on: May 12, 2018, 04:42:31 pm »



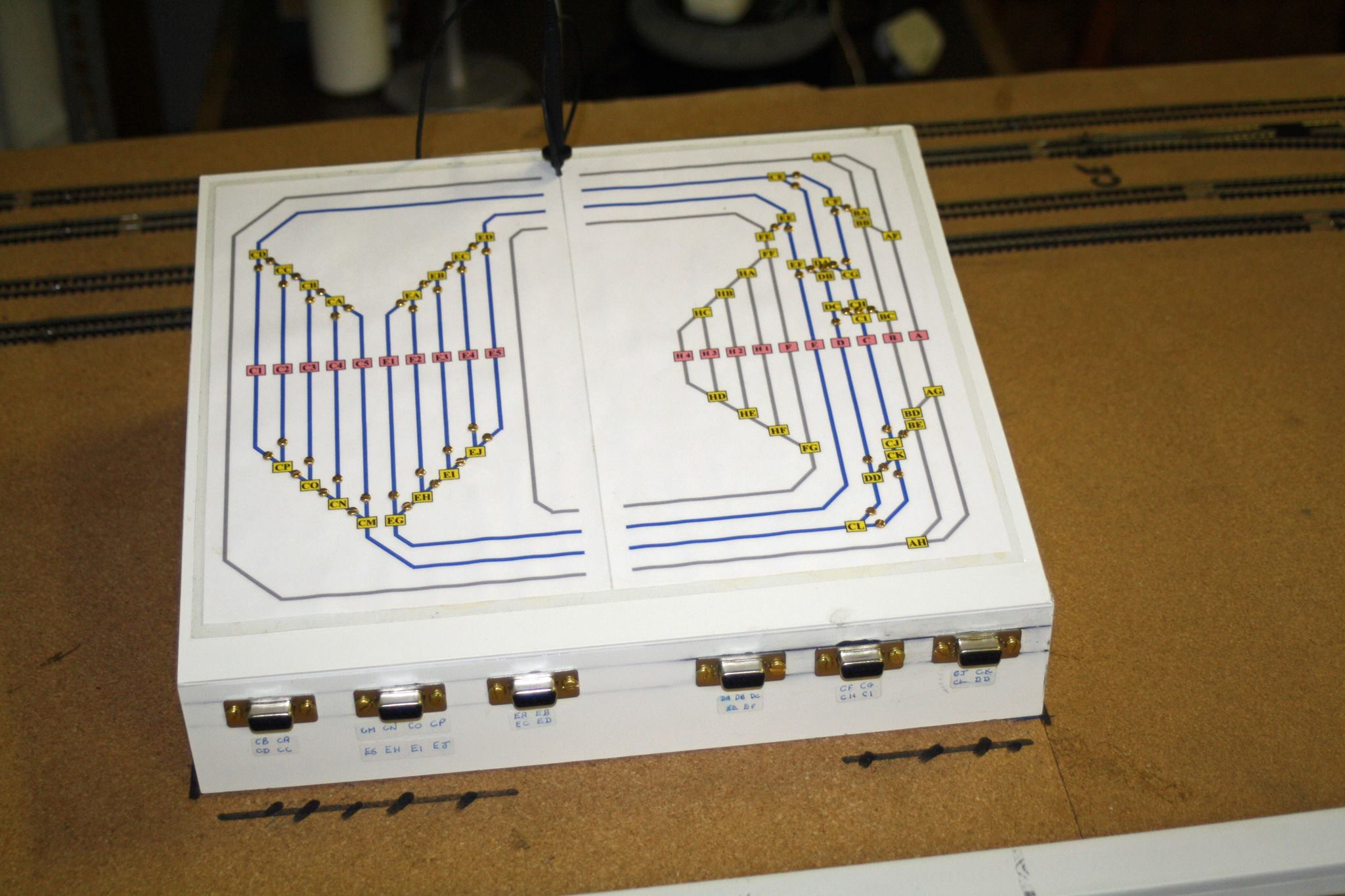

For the control panels for our club layout "Holgate", I used the drawing function in MS Word. The diagrams were then printed out, laminated and glued to the top surface of the control box.

Online austinbob

  • Trade Count: (+3)
  • Full Member
  • ***
  • N Gauge Society Number: 23835
  • Posts: 4320
  • Country: gb
  • Gender: Male
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #3 on: May 12, 2018, 04:49:46 pm »
I used MS Word for my panels as well, although I didn't bother with the laminating stuff - just stuck tape on to a white polycarbonate panel.
I believe MS Word drawing is the same drawing package used in other MS apps like Powerpoint. Its pretty easy to use although sometimes things move around when you're not expecting!!
 :) :beers:
Size matters - especially if you don't have a lot of space - and N gauge is the answer!

Bob Austin

Offline Paul-H

  • Trade Count: (0)
  • Full Member
  • ***
  • N Gauge Society Number: 27678
  • Posts: 428
  • Country: gb
  • Gender: Male
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #4 on: May 12, 2018, 06:05:07 pm »
As long as you only need straight lines and 45deg angles MS Paint does a good job.

Paul
Please excuse any poor spelling, I am Dyslexic, just think yourself lucky if you can actually read what I typed.

All tiepin as bean spell chequed on mi Pea Sea

Offline Mito

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 2124
  • Country: es
  • Gender: Male
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #5 on: May 12, 2018, 09:11:49 pm »
Inkscape is another good program
You know you're getting older when your mind makes commitments your body can't meet.

Offline kirky

  • Trade Count: (+2)
  • Full Member
  • ***
  • N Gauge Society Number: 18171
  • Posts: 1432
  • Country: 00
  • Gender: Male
    • Facebook
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #6 on: May 12, 2018, 09:37:02 pm »
I just used Anyrail. Made up a schematic and then exported as jpeg. The resulting picture can then be manipulated in a dtp.

cheers
Kirky
Northallerton is in the August 2018 edition of Raiway Modeller

and in real life at the Normanton and Pontefract exhibition. New College, Park Lane, Pontefract. 26/27th January 2019



Layout: Northallerton: http://www.ngaugeforum.co.uk/SMFN/index.php?topic=1671.msg16930#msg16930

www.northallertonngauge.co.uk

Cleveland Model Railway club website: www.clevelandmrc.club

Online njee20

  • Trade Count: (+4)
  • Full Member
  • ***
  • N Gauge Society Number: 22598
  • Posts: 3723
  • Country: gb
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #7 on: May 12, 2018, 09:39:28 pm »
I used PowerPoint.

Offline Zogbert Splod

  • Trade Count: (0)
  • Full Member
  • ***
  • N Gauge Society Number: 25518
  • Posts: 1230
  • Country: scotland
    • Zog Trains
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #8 on: May 13, 2018, 09:49:20 pm »
@DarrwestLU6
The dreaded Nobster tagged me on this thread.  All I can really add is that I use a very old CAD prog to do all of my drawings of this nature.  (AutoSketch 2.0)  I can't recommend that software unless you have a very old machine to load it into, I use an aged laptop to run it.  It is actually a 16 bit prog!
I have tried using the MS Office stuff but I really can't get on with it.  I find it quirky.  Only word that fits for me.

DarrwestLU6, have you uploaded your track plan on any other forum thread?  It may help people to help you if we know what you are trying to achieve.

Allan.....
@Newportnobby
"When in trouble, when in doubt, run (trains) in circles..." etc.
There, doesn't that feel better?
Lovely!

Planning thread:
http://www.ngaugeforum.co.uk/SMFN/index.php?topic=25873.0

My website: Zog Trains

Run what thou wilt shall be the whole of the law
I may appear to be listening to you, but inside my head, I'm playing with my trains.

Offline snitchthebudgie

  • Trade Count: (0)
  • Full Member
  • ***
  • 2mm Association Number: 4489
  • Posts: 133
  • Country: gb
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #9 on: May 13, 2018, 10:35:40 pm »

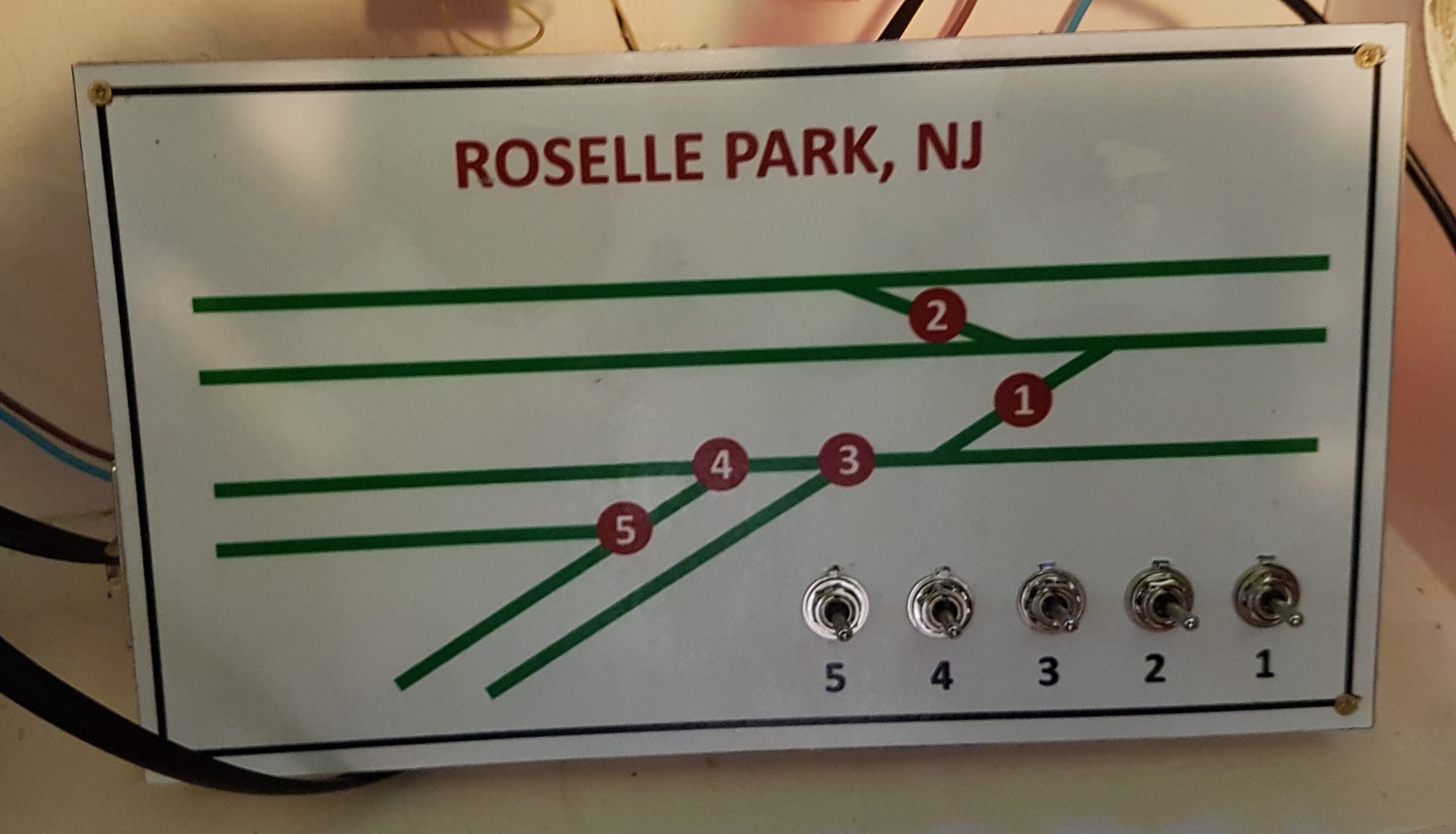

I use (and recommend) Paint.net, an open source program somewhere between Paint and Photoshop.  Simple but effective.  This is my simple control panel for my N-club modules and switching layout.



Offline NinOz

  • Trade Count: (0)
  • Full Member
  • ***
  • N Gauge Society Number: Ex3504
  • Posts: 652
  • Country: au
  • Gender: Male
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #10 on: May 14, 2018, 03:53:11 am »
Corel Draw.
To be called pompous and arrogant - hell of a come down.
I tried so hard to be snobbish and haughty.

Online njee20

  • Trade Count: (+4)
  • Full Member
  • ***
  • N Gauge Society Number: 22598
  • Posts: 3723
  • Country: gb
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #11 on: May 14, 2018, 08:21:00 am »
The advantage of PowerPoint over more bespoke graphics package is features like distribute vertically - you can draw 12 lines for your fiddle yard and then space them evenly at the touch of a button. Very satisfying.

I’m sure you can do it in the various graphics packages, but it’s a bit ‘sledgehammer to crack a walnut’ IMO.

Online ntpntpntp

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 2133
  • Country: gb
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #12 on: May 14, 2018, 01:23:10 pm »
I'm a big fan of Visio, I've used it for years for all my layout diagramming, buildings, decal production etc.

Recently at work we've been using Draw-IO which does a very similar job to Visio and is available free.

For control panels I design in Visio and print on paper, but transfer the lines to aluminium sheet and use car striping tape to mark out the trackwork. Switches and LEDs are then directly mounted on the aluminium.
Nick.   2016 celebrating the 20th anniversary of "Königshafen" exhibition layout!

Offline Pelhama

  • Trade Count: (0)
  • Full Member
  • ***
  • N Gauge Society Number: 16516
  • 2mm Association Number: 4392
  • Posts: 23
  • Country: gb
  • Gender: Male
    • Personal Website
    • Awards
Re: Control Panel Drawing Software - ideas?
« Reply #13 on: May 23, 2018, 06:04:40 pm »
I use Xara for most drawing work on the PC - also web design, although my current site uses the Weebly designer.

I have not yet built a panel using an Xara produced fascia print, although a friend has built a couple using the same design principle. Previously I had masked the track plan on the reverse side of perspex and painted with enamel/acrylic paint, then glossed over the whole thing. When viewed from the front the paint is nice and flat against the rear face of the perspex.

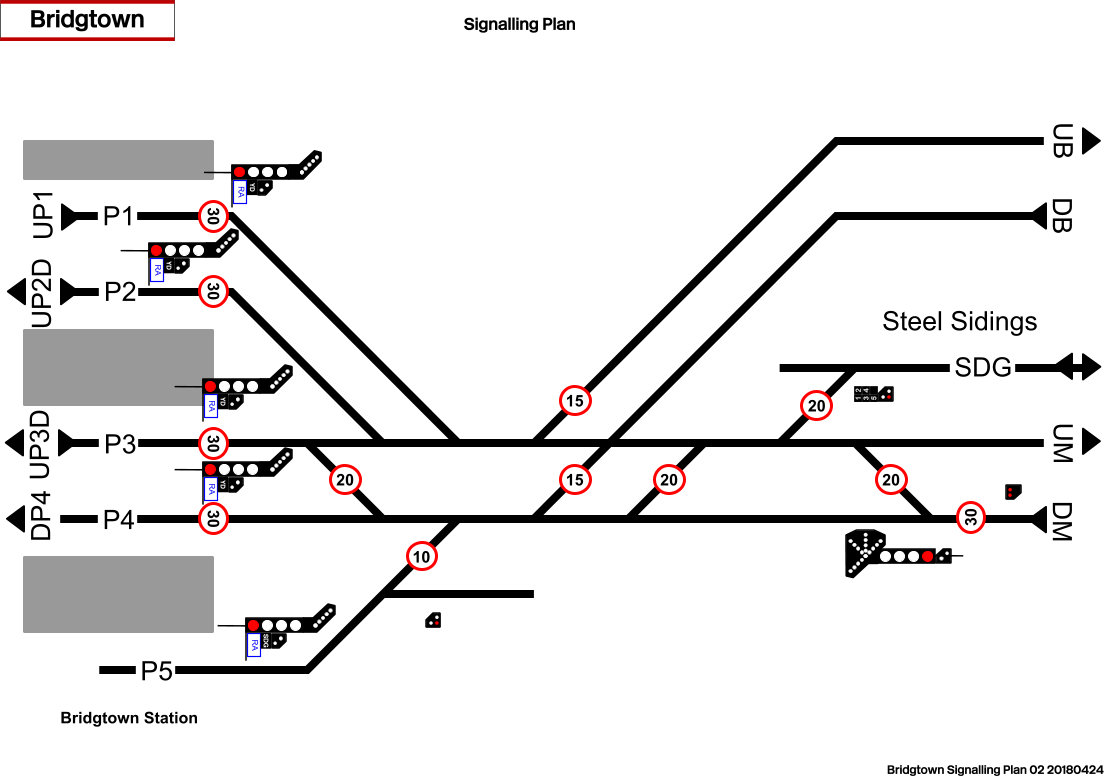

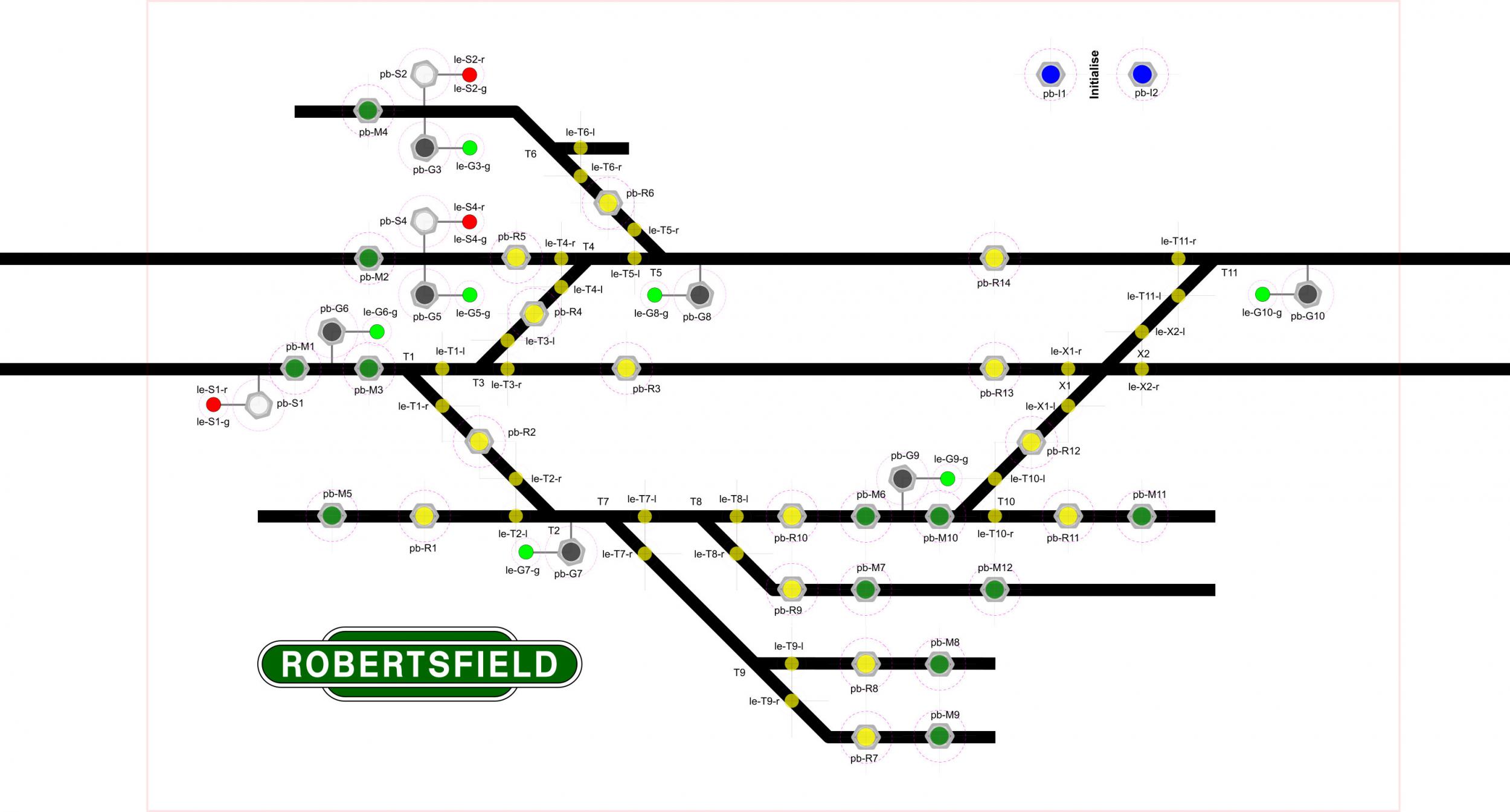

A couple of designs are my 'Robertsfield' panel fascia and 'Bridgtown' Signalling Plan:






Below are some photos of the panel I built for Crawley MRS' 'West Tilgate' using the painted approach - one thing I did learn from it is enamel paints give a crisper finish than acrylics when removing the masking tape!:

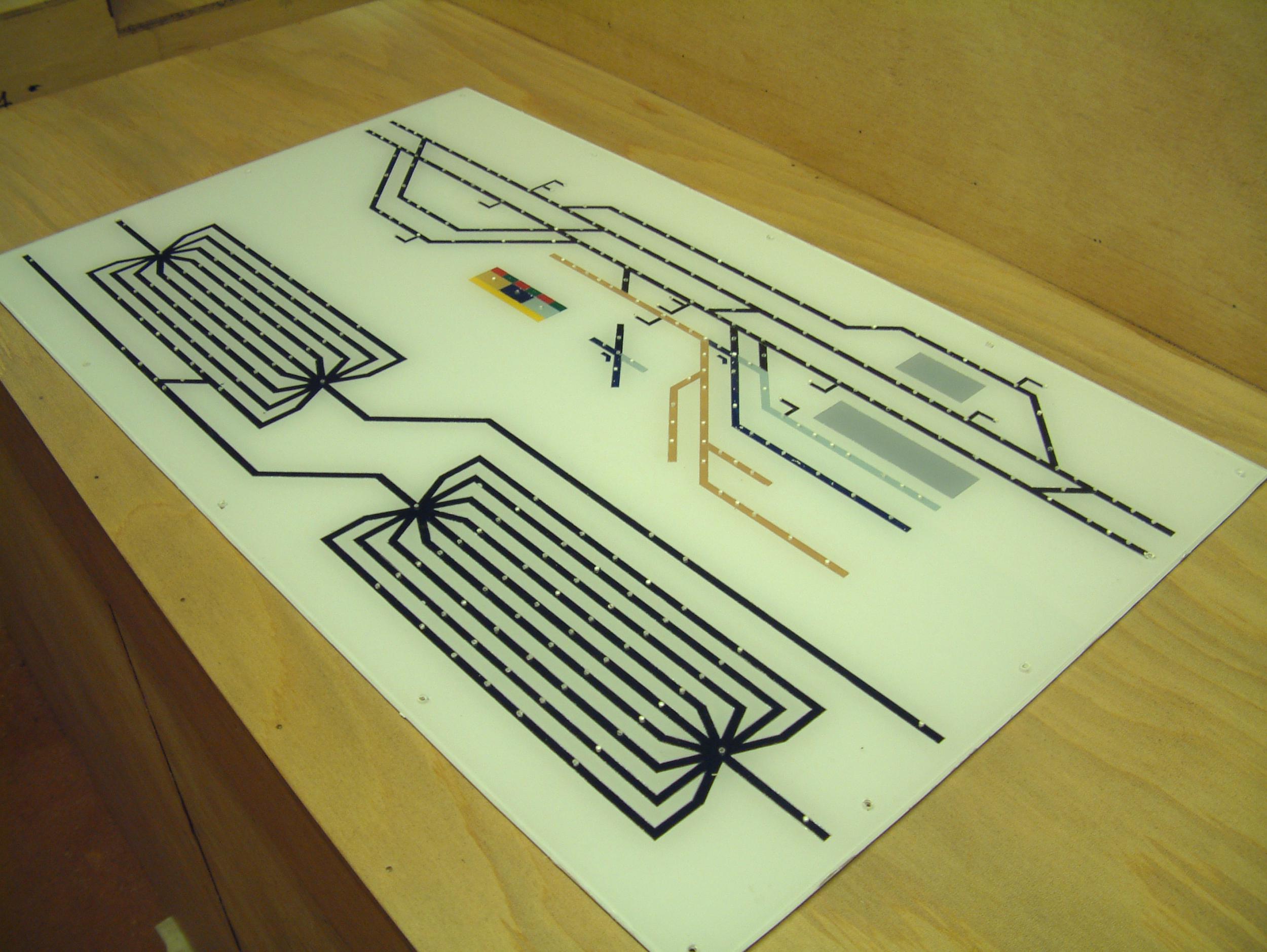

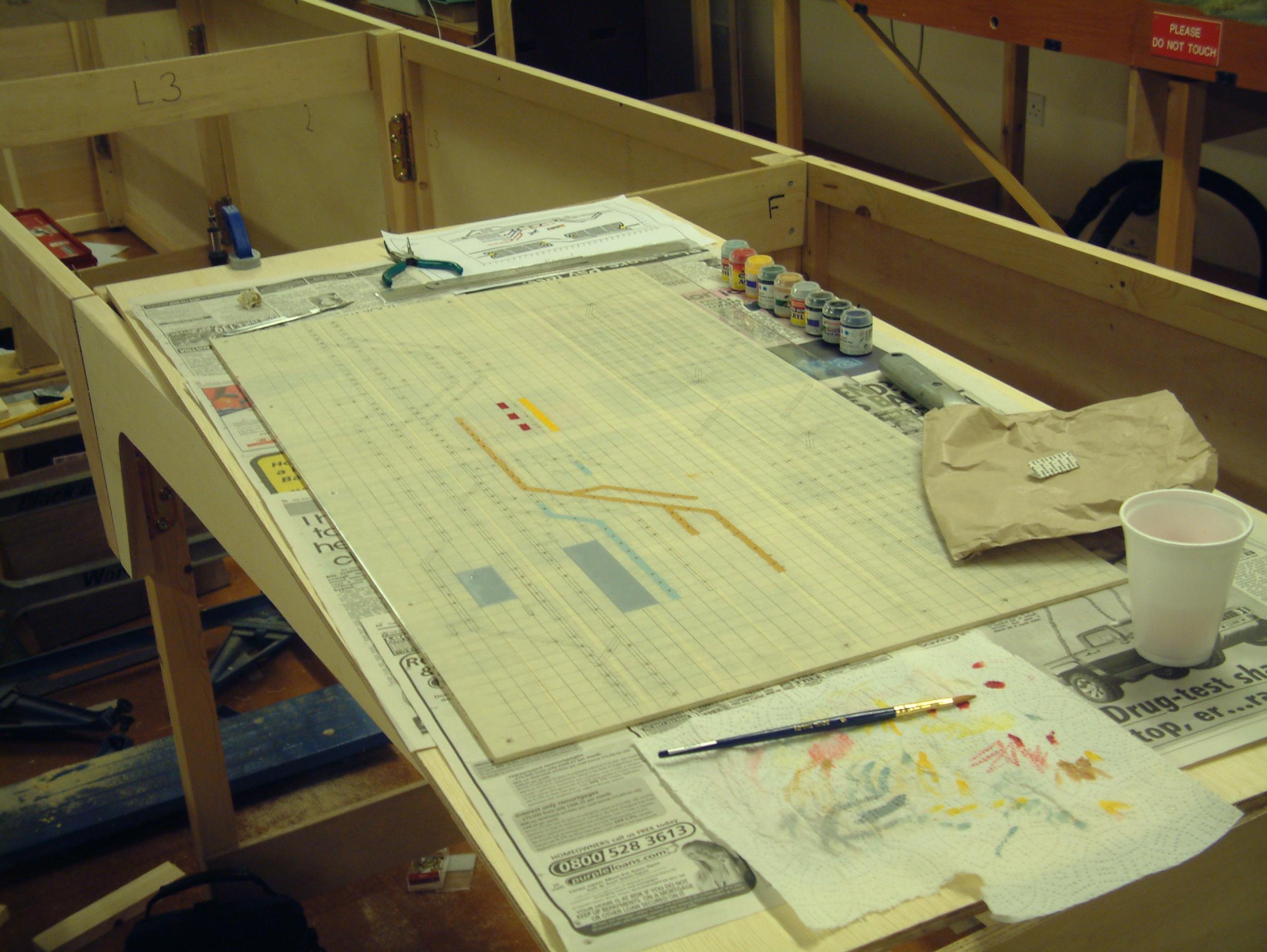

The plan drawn in reverse, pilot holes drilled, with the masking tape removed as each colour is applied.


The completed fascia prior to opening out the switch and LED holes.

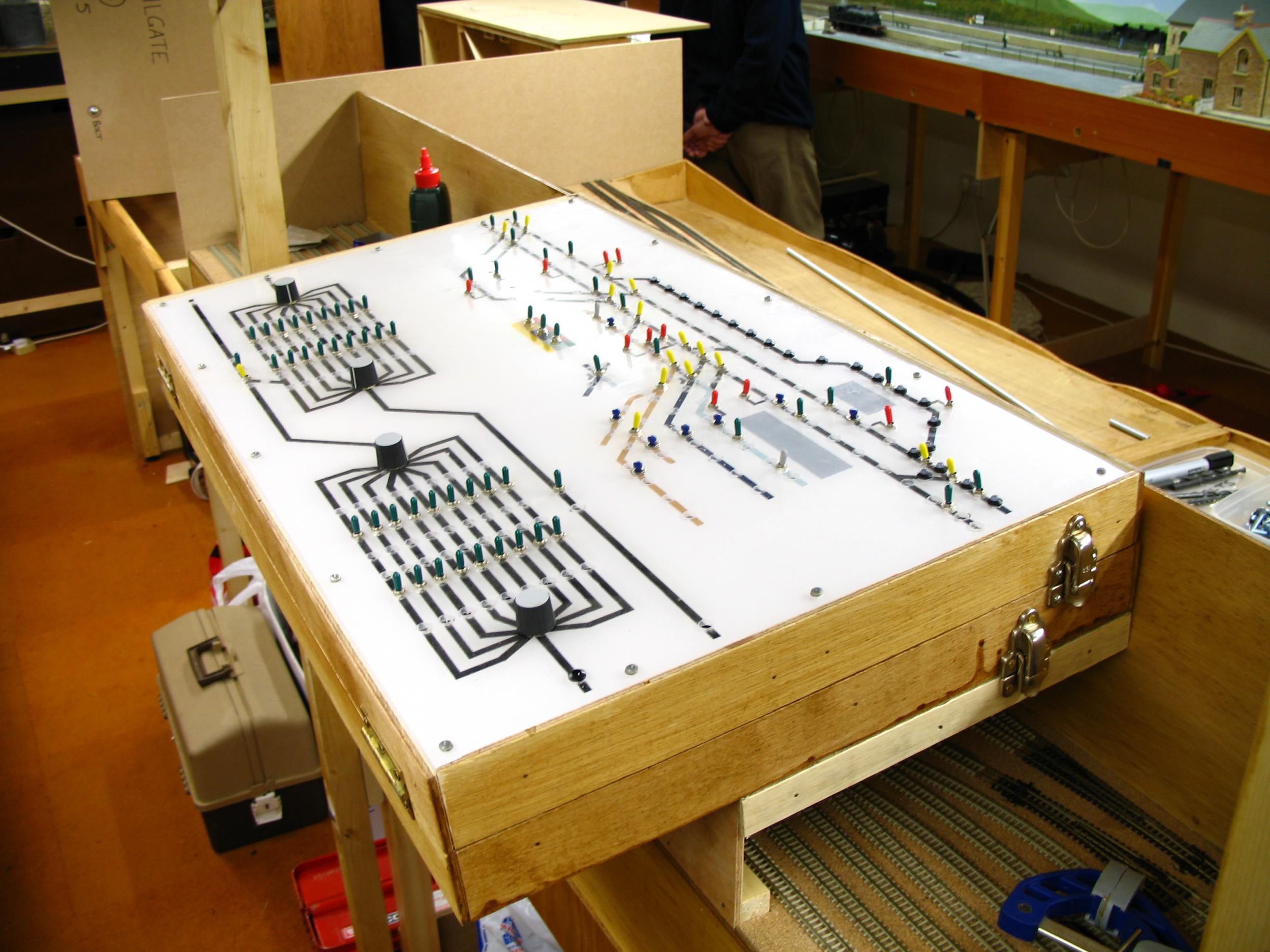

The fascia mounted in the panel; all switches fitted and LEDs progressively being installed and connected.

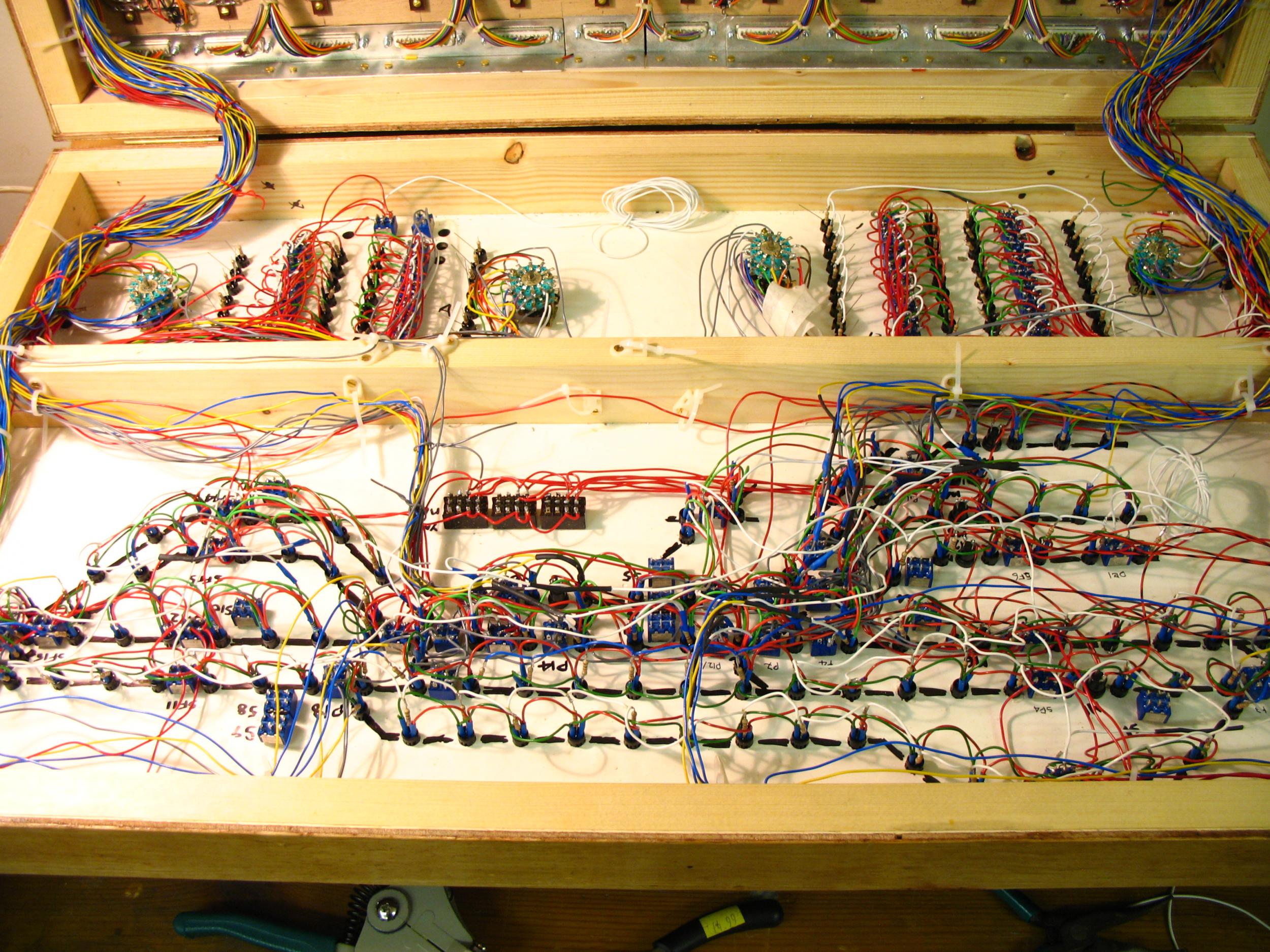

Inside rear face of the fascia with track lines drawn over the gloss emulsion to indicate the track lines for reference during assembly.
