Next18 DCC interface info
« on: January 13, 2018, 07:56:53 pm »
The NEM662 Next18 standard opens up a whole new way of installing sound decoders but there is very little info available and what there is can be a little confusing so here is my effort to help sort out the different types of connectors.

The Next18 sockets are available in 2 basic types, the small (K) with 12 breakout terminals and the large (or grand) with 15 breakout terminals.  The large (G) is dedicated for sound installs but the smaller (K) version can also be used for sound installs with most Next18 sound decoders but double check first before you use the small for sound install.

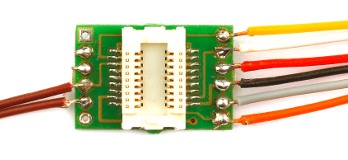

Next18G small socket (12 lead version)




Next18G small pinout



Google translated German text for the Next18K (smaller socket)

With the help of our adapter N18-K you can freely wire our sound decoder SD18A in your model. You benefit from a secure, pluggable connection, which allows easy replacement of the decoder at any time. All connection wires are on the adapter - there are no more wires from the decoder to the model. Preparation Before installation, the locomotive must be checked for perfect electrical and mechanical condition. Defects or contamination must be removed before installation. Basically, the specifications of the locomotive manufacturer are to be observed. Likewise, before installing the connection adapter, the locomotive must also be checked for perfect operation in DC operation. For new locomotives it is recommended to drive the locomotive in each direction for half an hour. Before installing the connection adapter, all connections between the engine and the track connections must be cut (grinder, chassis, etc.). The two motor connections must be ground free! Furthermore, all existing capacitors, especially at the connections for the light and the engine, to remove. To attach the connection adapter, we recommend a double-sided adhesive tape. Installation Insert the Next18 decoder so that the longer decoder section covers the speaker connections. Make sure that there is sufficient insulation between the decoder and the connection adapter (eg with adhesive tape).

Connect the wires of the model according to the following scheme: white wire light forward (LV) yellow wire light backward (LR) orange wire motor connector 1 (M1) gray wire motor connector 2 (M2) red wire tracl 1 (G1) black wire tracl 2 ( G2) Brown wires Speakers. If desired, you can use the AUX1 and AUX2 connectors to connect two additional loads to the connection adapter. As a return conductor for the LV, LR, AUX1 and AUX2 function outputs, you can use either a rail connection (G1 or G2) or alternatively the common return conductor (VS, carries up to 30 volts). An additional buffer capacitor with a charging circuit can be connected to the GND and VS connections, if desired.
Support and help If you have any problems or questions, please send an e-mail to doehler-haass@t-online.de. You will usually receive an answer within a few days.

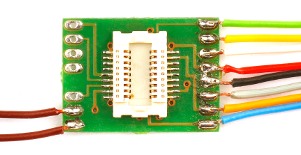

Next18G (large 15 lead version (Additional pinouts for SUSI connections)





Google translated German text

With the help of our adapter N18-G you can freely wire our sound decoder SD18A in your model. You benefit from a secure, pluggable connection, which allows easy replacement of the decoder at any time. All connection wires are on the adapter - there are no more wires from the decoder to the model. Preparation Before installation, the locomotive must be checked for perfect electrical and mechanical condition. Defects or contamination must be removed before installation. Basically, the specifications of the locomotive manufacturer are to be observed. Likewise, before installing the connection adapter, the locomotive must also be checked for perfect operation in DC operation. For new locomotives it is recommended to drive the locomotive in each direction for half an hour. Before installing the connection adapter, all connections between the engine and the track connections must be cut (grinder, chassis, etc.). The two motor connections must be ground free! Furthermore, all existing capacitors, especially at the connections for the light and the engine, to remove. To attach the connection adapter, we recommend a double-sided adhesive tape. Installation Insert the Next18 decoder so that the longer decoder section covers the speaker connections. Make sure that there is sufficient insulation between the decoder and the connection adapter (eg with adhesive tape).

Connect the wires of the model according to the following scheme: white wire light forward (LV) yellow wire light backward (LR) orange wire motor connector 1 (M1) gray wire motor connector 2 (M2) red wire track 1 (G1) black wire track 2 ( G2) Green wire Function output AUX1 (N18-G-2 and N18-G-3 only) Violet (or Brown) wire Function output AUX2 (N18-G-3 only).  Blue wire common return leads up to 30 volts (VS) (N18-G only) 2 and N18-G-3) brown (or violet) wires Speakers.  If desired, you can connect an additional buffer capacitor with a charging circuit to the GND and VS terminals. For loading sound projects please connect the connections GND, ZDAT, ZCLK and VS of the connection adapter with the connectors GND (sw), ZDAT (gr), ZCLK (bl) and ZVS (rt) of the programmer.
Support and help If you have any problems or questions, please send an e-mail to doehler-haass@t-online.de. You will usually receive an answer within a few days.

Hope someone finds this info useful  :)
Here's a link to where you can buy the various sockets https://www.en.dm-toys.de/liste/search/next18/kategorie_en/zubehoer_en.html

« Last Edit: January 19, 2018, 02:53:28 pm by Caz, Reason: typo »

Offline GrahamB

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 877
  • Country: gb
  • Gender: Male
    • Awards
Re: Next18 DCC interface info
« Reply #1 on: January 13, 2018, 08:03:33 pm »
Thanks for posting the info. I'm still trying to get my head around the six pin chips. Will they be made obsolete by these?

Offline Caz

  • Moderator
  • Trade Count: (0)
  • Full Member
  • ****
  • N Gauge Society Number: 23044
  • Posts: 5156
  • Country: es
  • Gender: Female
  • Fairford Branch ticket 1958
    • Twitter
    • YouTube
    • Skype
    • Awards
Re: Next18 DCC interface info
« Reply #2 on: January 13, 2018, 08:13:19 pm »
I think the 6 pin will be around for quite a while yet as it fits locos where no other decoder can go, the Next18 makes it easier for manufactures to build in a decoder socket.

Offline Shropshire Lad

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 59
  • Country: gb
    • Awards
Re: Next18 DCC interface info
« Reply #3 on: January 13, 2018, 10:15:18 pm »
Thanks for that, I thought of trying a next 18 decoder for a 'snug' sound install and this saves me loads of work

Offline Lindi

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 416
  • Country: 00
    • Awards
Re: Next18 DCC interface info
« Reply #4 on: January 13, 2018, 10:16:59 pm »
The Next18 pin connections are

Connection
Contact No.
Contact No.
Connection
Track right
1
18
Track Right
Motor+
2
17
F0 r
AUX1
3
16
AUX5
AUX3
4
15
U+
GND
5
14
GND
U+
6
13
AUX4
AUX6
7
12
AUX2
F0 f
8
11
Motor-
Track Left
9
10
Track Left

Each pin is rated at 0.5 amp. Track pins are duplicated to provide 1amp rating

The layout of the pins is such that if the chip is inserted the wrong way round no damage will be caused.

For sound decoders pin 7 (aux6) is loudspeaker B and pin 16 (aux5) is loudspeaker A

Offline ntpntpntp

  • Trade Count: (0)
  • Full Member
  • ***
  • Posts: 1874
  • Country: gb
    • Awards
Re: Next18 DCC interface info
« Reply #5 on: January 13, 2018, 11:05:43 pm »
I'd be a bit worried about the soldering of the wires to those sockets in the images - the insulation has melted back on a few of the connections, and black/red look shorted together on the 15 way socket!
« Last Edit: January 13, 2018, 11:07:10 pm by ntpntpntp »
Nick.   2016 celebrating the 20th anniversary of "Königshafen" exhibition layout!

Offline Caz

  • Moderator
  • Trade Count: (0)
  • Full Member
  • ****
  • N Gauge Society Number: 23044
  • Posts: 5156
  • Country: es
  • Gender: Female
  • Fairford Branch ticket 1958
    • Twitter
    • YouTube
    • Skype
    • Awards
Re: Next18 DCC interface info
« Reply #6 on: January 14, 2018, 11:18:51 am »
Would agree, the soldering is not very good and that pic was from the manufacturer's website but in their defence, the supplied sockets were wired perfectly ok.

Here's a pic of the pin out for the actual plug/socket with all the important ones doubled up (Rail left, rail right, Com+, ground) which means even if you fit the decoder the wrong way round it won't blow it, just not work properly, a bit like the current 6 pin version
