Re: Help with building a 323 and a 304 EMU
« Reply #45 on: January 31, 2018, 09:22:15 pm »
I’ll paint the underframes, and then the vinyls are all yours Jon! @PostModN66  :laughabovepost:

Offline PostModN66

  • Trade Count: (+2)
  • Full Member
  • ***
  • N Gauge Society Number: 17980
  • Posts: 1874
  • Country: gb
  • Gender: Male
    • YouTube
    • Awards
Re: Help with building a 323 and a 304 EMU
« Reply #46 on: February 16, 2018, 03:00:39 pm »
I sat down this morning intent on finishing the ends of the 323 but got completely sidetracked into fitting the couplings and test running.

Firstly, I realised I needed to shorten the chassis, because I had to shorten the body to fit the Electra vinyls.  I have done this before so it wasn't too scary.

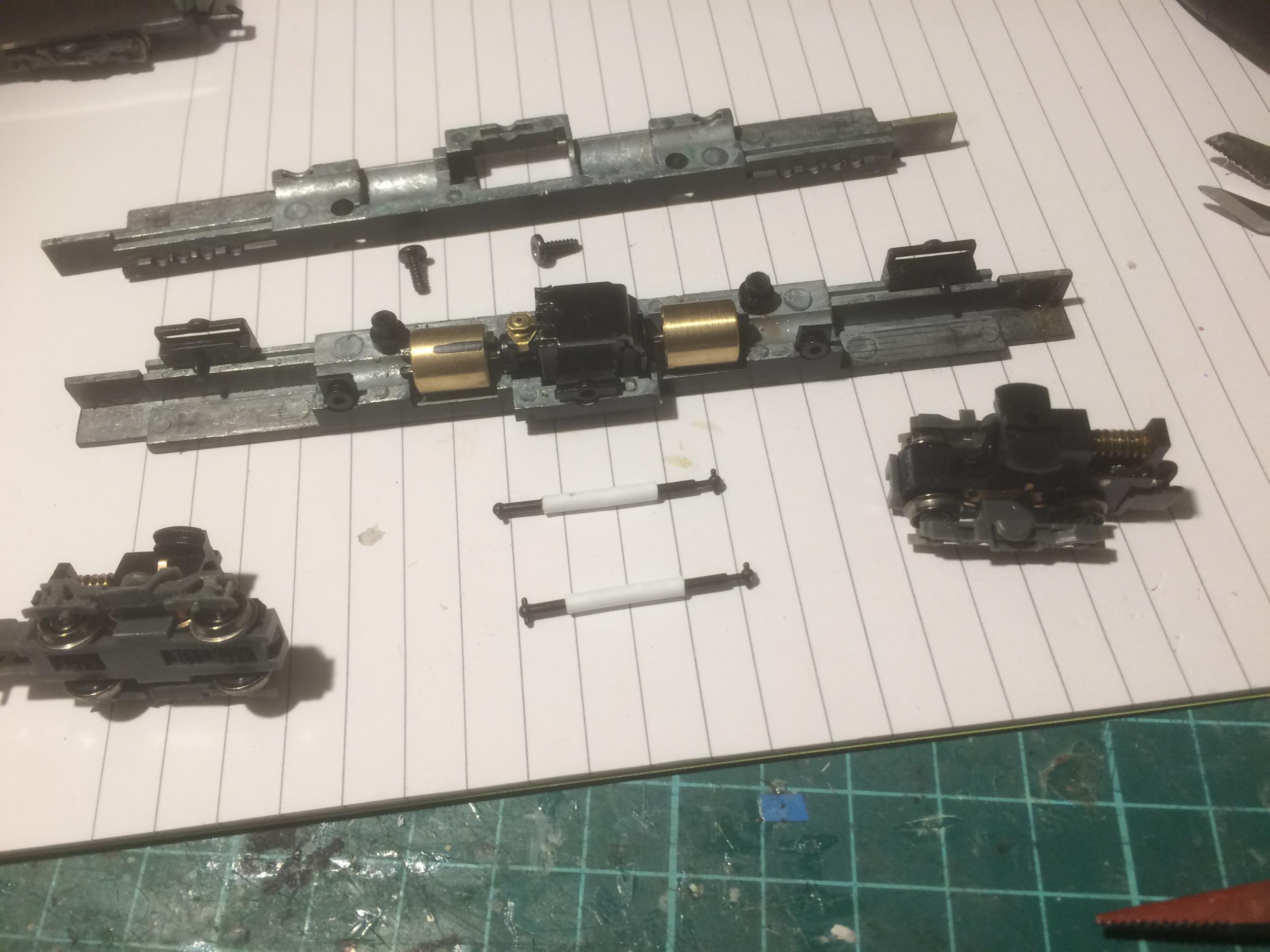

The picture shows the chassis taken apart, the "slidey things" that hold the bogies in place have been moved one notch inboard, which is around 4mm each end.   By turning the slidey things around you can move it by 2mm, so you have quite fine adjustment of length.   I have chopped out the central 4mm of each drive shaft, then fitted a short length of plastikard tubing, drilled out to 1.5mm which is a good tight fit.

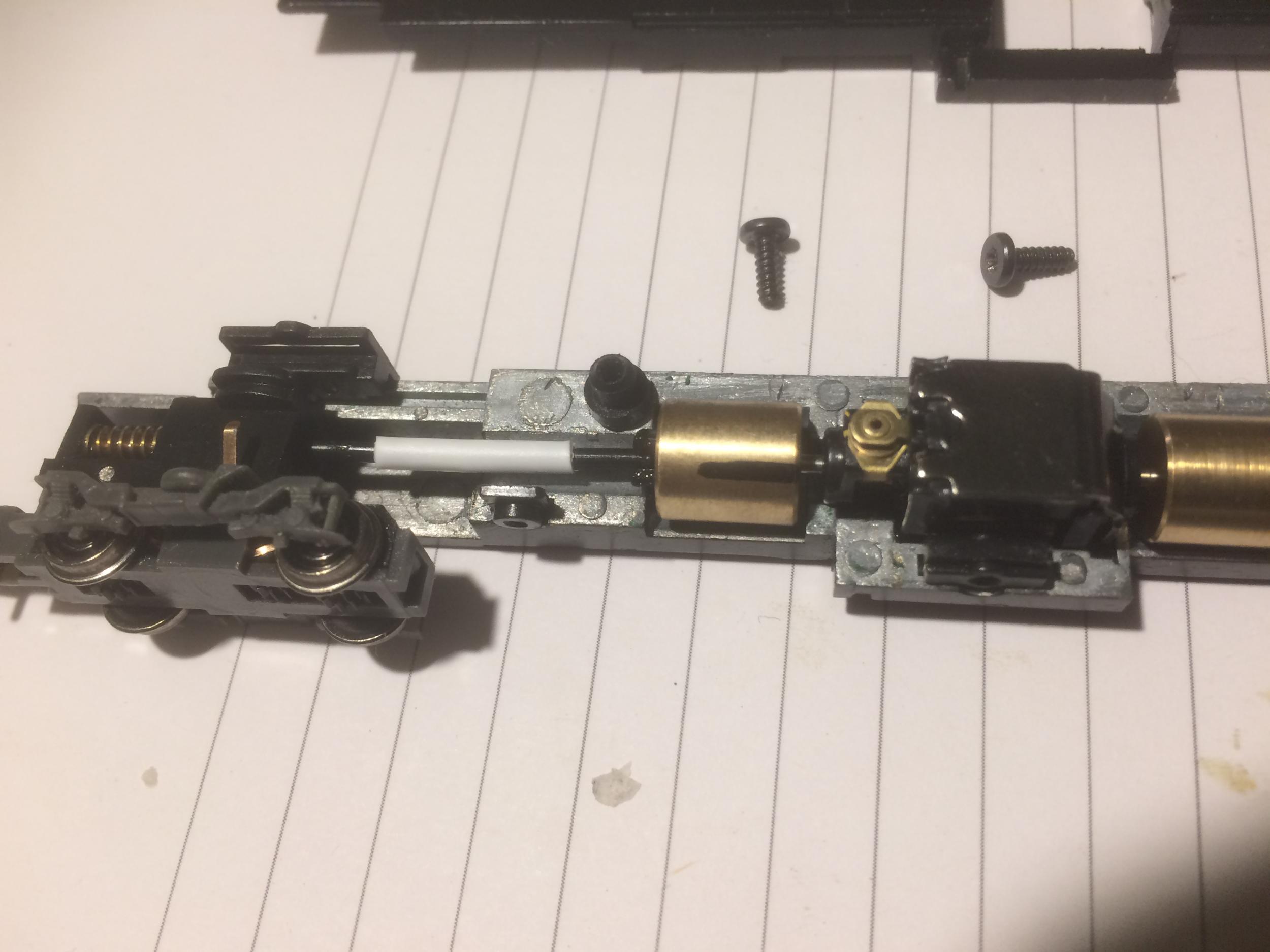

Here it is in situ on the chassis:



Getting these chassis back together is a fiddle; nearly always something drops out of alignment and you have to do it again.  There must be a clever way of doing it  ???

I then fitted Dummy Knuckle couplers to the power car, and realised I had to adjust the length of the coupler arm on the bogies of the trailers.  It is something of a miracle how this plastic brilliantly ignores Superglue; I ended up using Evo-Stick, and reinforcing with a wire staple.

A test run followed; I am quite pleased with the coupling distances.  I couldn't get @Cooper 's under frame detailing on for the power car; don't know what I'm doing wrong but I can't get it to fit  :worried:



Cheers Jon  :)
« Last Edit: February 16, 2018, 03:05:17 pm by PostModN66 »
