« Reply #142 on: May 30, 2018, 10:51:31 pm »
Ok so messing about with electronics over the long weekend so 8 of the 11 points are now servoed up and connected to the arduino via a servo controller board. Iíve also added a couple of banks of power relays that will be used for frog polarity switching on the 3 way point and selecting which line each of the 3 controllers is operating.

Final bit bolted on today was an Ethernet shield. This turns the arduino into a web server so now the whole monstrosity can be controlled by simple html commands. Which means I can slap together a simple Unity app to control the whole thing from an iPad.

Both the gubbins and app are early stages but Iíve already got smooth point control happening :)

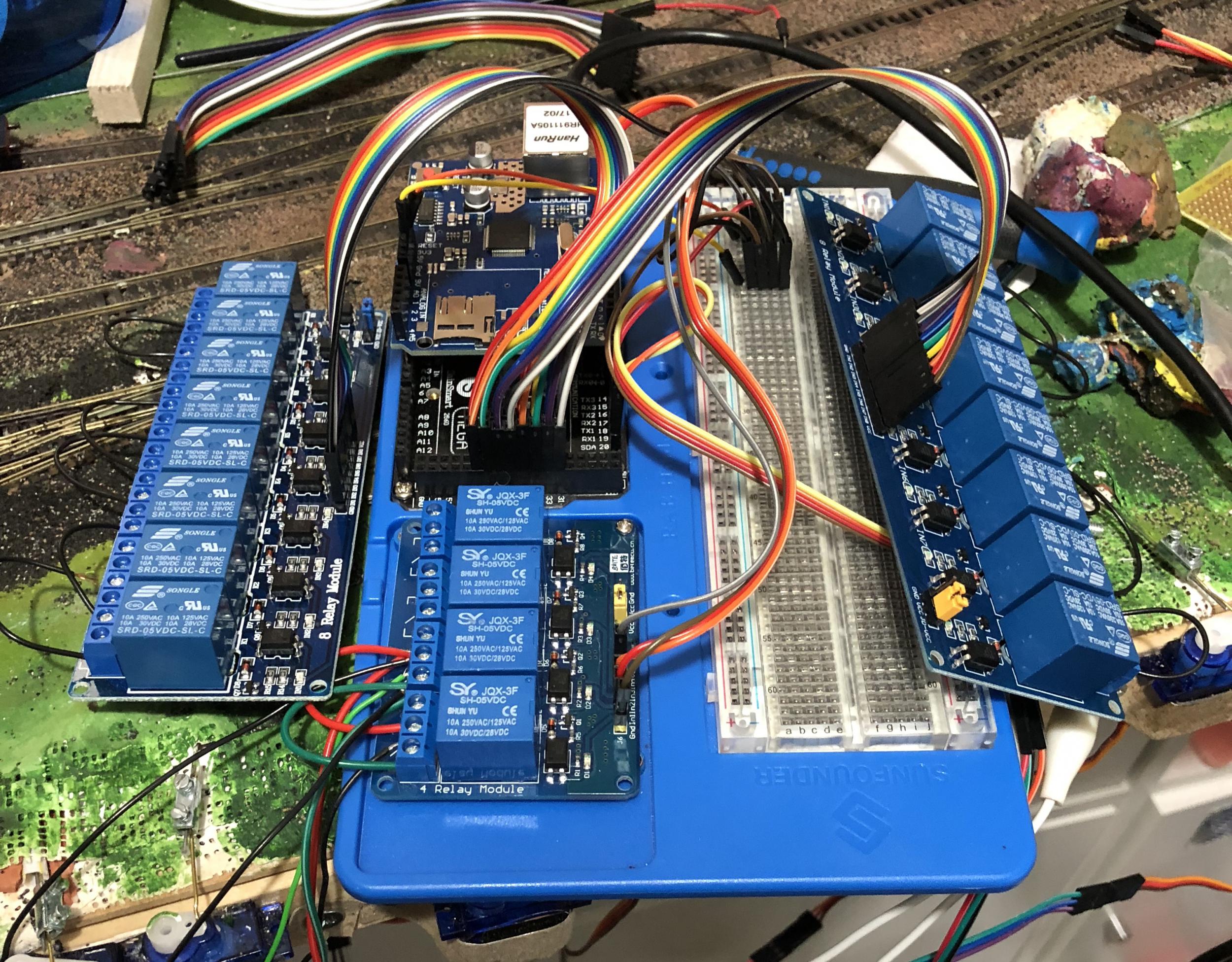

The Gubbins.

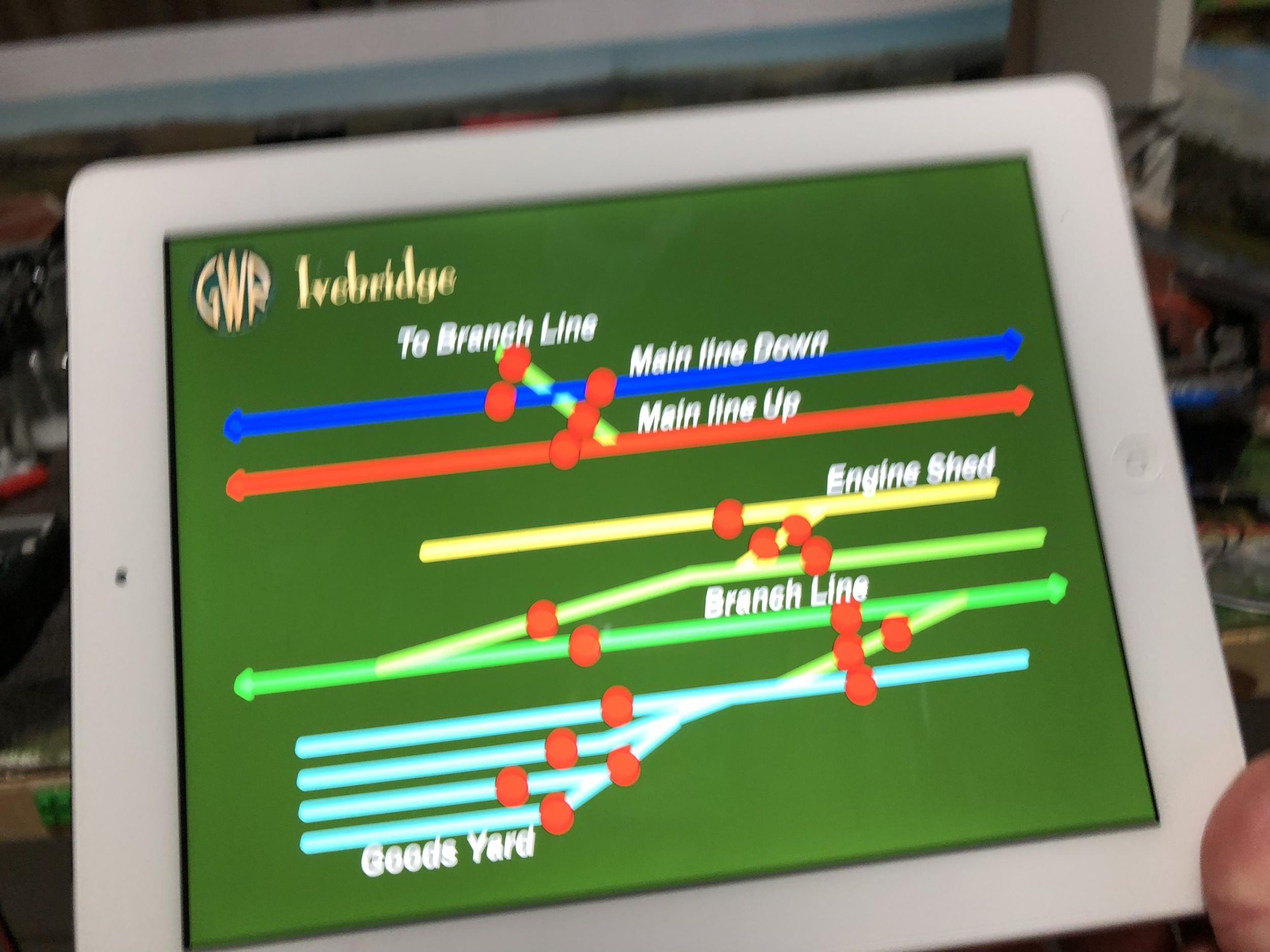

First prototype of the app (with coder art)
